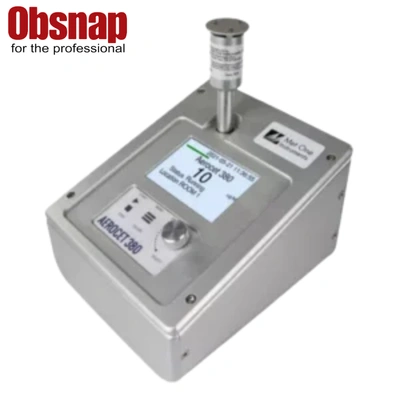

Aerocet 380 Portable Dust Monitor

The Aerocet 380 Portable Dust Monitor is a high-accuracy, laser-based instrument for real-time measurement of airborne dust concentration, featuring integrated data logging and multiple communication options.

  • Wide Measurement Range: 0–100 mg/m³ with high sensitivity down to 0.001 mg/m³.
  • Accurate Laser Technology: Forward light scatter nephelometer with ±5% accuracy.
  • Real-Time Monitoring: 3.5” color LCD, automatic zero/purge air system, and onboard data logger.
  • Flexible Connectivity: RS-485, USB-C, and WiFi with support for PM1, PM2.5, or PM10 cut points.

Description

The Aerocet 380 Portable Dust Monitor is a high-performance instrument designed for real-time measurement of airborne dust and particulate concentration in industrial, environmental, and occupational settings. Using a forward light-scatter laser nephelometer, it measures particulate concentrations from 0 to 100 mg/m³ with high sensitivity down to 0.001 mg/m³. Optimized for particle sizes between 0.5 and 10 µm, the Aerocet 380 delivers accurate and stable results, making it suitable for applications such as workplace dust monitoring, environmental surveys, and process control.

Designed for reliability and ease of use, the Aerocet 380 features a 3.5-inch color LCD, integrated data logger with over 15,000 records, and an automatic zero and purge air system to maintain long-term accuracy. It supports RS-485, USB-C, and WiFi communication, allowing flexible data transfer and remote monitoring. With a durable brushless pump, optional PM1, PM2.5, or PM10 cut points, and portable battery-powered operation, this dust monitor provides a practical and dependable solution for continuous air quality and dust concentration monitoring.

Features

  • Monitoring of dust concentration in real-time and accuracy.
  • Easy to operate.
  • Integrated DataLogger
  • Automatic Zero/Purge Air System.
  • RS-485, USB, and WiFi communication.

Specifications

Measurement Principles: Particulate concentration by forward light scatter laser Nephelometer.
Measurement Range: 0 to 100 mg/m3

(0 to 100,000 µg/m3)



Measurement Sensitivity: 0.001 mg/m3
Nephelometer Accuracy: ± 5% traceable standard with 0.6 µm PSL
Particle Size Sensitivity: 0.1 to 100 µm. Optimal sensitivity 0.5 to 10 µm particles
Long-term Stability: 5% with clean optics
Laser Type: Diode Laser, 5 mW, 670 nm; Visible red
Display: 3.5” color LCD
Flow Rate: 2.0 liters/ minute ± 0.1 LPM. Actual volumetric flow
Pump Type: Brushless Diaphragm (20,000 hour)
Power: Input: 14.8 V Li Battery, Output: 16.8 VDC @ 1.8 A
Power Consumption: 5.25 W
Digital I/O: RS-485, USB-C, WiFi
Purge Filter: 0.01 µm (99.99% in air)
Pump Filter: 5.0 micron
Serial Communication: ASCII, MODBUS
Internal Data Storage: >15,000 records
Operating Temperature: 0° C to +40° C
Ambient Humidity Range: 0 to 90% RH, non-condensing
Factory Service Interval: 24 Months typical, under continuous use in normal ambient air
Unit Weight: 2.3 kg (5.1 lbs)
Unit Dimensions: 21.6 cm height, 15.2 cm width, 21.0 cm depth (8.5” x 6.0” x 8.25”)
Available Cut Points: PM1

, PM2.5, or PM10 separators optional
