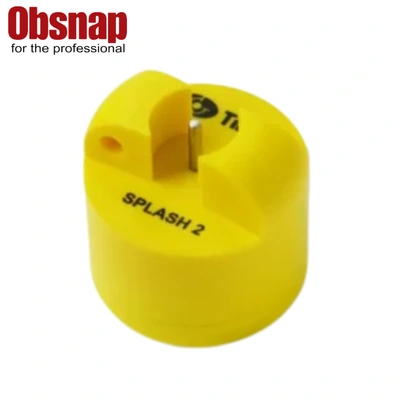

Tinytag Splash 2 Data Logger

The Tinytag Splash 2 is a high-temperature, submersible data logger with a fast-response PT1000 probe. It is ideal for monitoring water or other liquids up to 105°C, with robust waterproofing and extensive data logging capabilities.

  • Measurement Range & Resolution: -30°C to +105°C (-22°F to +221°F), resolution 0.01°C.
  • Durable & Waterproof: IP68 rated, submersible up to 15 m, compact 51 mm diameter case.
  • Data Logging & Alarms: 32,000 readings capacity, 2 user-programmable alarms, customizable logging intervals, start delay and trigger functions.
  • Battery & Alerts: Low-battery alert with easily replaceable battery for long-term deployments.

Description

The Tinytag Splash 2 Data Logger is a high-performance temperature recorder designed for demanding aquatic and industrial environments. Featuring an integral PT1000 probe, it can measure temperatures from -30°C to +105°C (-22°F to +221°F) with a fine resolution of 0.01°C or better, and achieves a rapid response time of just 10 seconds to 90% full-scale deflection in water. Its rugged IP68-rated waterproof casing allows submersion up to 15 meters, while the compact 51 mm × 51 mm design and lightweight 95 g body make it easy to deploy in confined or mobile setups.

Beyond precise temperature logging, the Splash 2 offers versatile data management features, including a memory capacity of 32,000 readings, two user-programmable alarms, and adjustable logging intervals via inductive pads. Users can set start delays and triggers for custom monitoring schedules, and a low-battery alert ensures uninterrupted operation. This combination of accuracy, speed, and durability makes the Tinytag Splash 2 ideal for environmental monitoring, laboratory studies, and industrial processes requiring reliable, long-term temperature tracking.

Features

  • High-temperature recorder
  • Waterproof to 15 metres Quick response time
  • 32,000 page capacity
  • 2 alarms that can be customised
  • User-programmable logging intervals for inductive pads
  • Start delay and trigger
  • Low-battery alert

Specifications

Reading Specification

Parameter Specification
Reading Range -30°C to +105°C (-22°F to +221°F)
Sensor Type PT1000 (Integral Probe)
Response Time 10 seconds to 90% FSD in water
Reading Resolution 0.01°C or better
Reading Accuracy Not specified

Physical Specification

Property Specification
IP Rating IP68 (waterproof) to 15 m
Operational Range -30°C to +105°C (-22°F to +221°F)*
Case Diameter 51 mm / 2.01″
Case Height 51 mm / 2.01″
Weight 95 g / 3.35 oz

*The Operational Range indicates the physical limits to which the unit can be exposed; these limits should not be exceeded.
