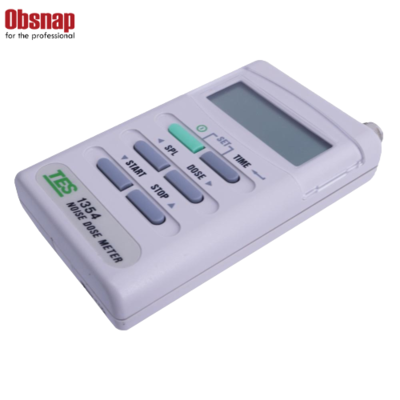

TES-1354 / TES-1355 Noise Dose Meter
Product Features:
- Pocket Size/light weight. Exact and extremely simple to utilize.
- Measures % Noise Dose/Exposure Time/Sound Level.
- Security lock (Power off).
- Top 140dBA and 115dBA RMS Flags. Stockpiles up to 5 Separate occasions. (1355)
- Constant clock schedule/RS-232 point of interaction. (1355)
- Occupation wellbeing application.
Description
| Model | TES-1354 | TES-1355 | Model | TES-1354 | TES-1355 | ||
|
Applicable standards |
Sound Exposure
Meter/Dosimeter Standards: IEC 61252: 2000, ANSI S1.25: 1992 for dosimeters and sound exposure meters. |
Frequency weighting |
A |
||||
|
Time weighting |
FAST , SLOW |
||||||
| Digital display | .01 ~ 9999 %DOSE | Microphone | 1/2 inch electret condenser microphone | ||||
| Criterion level | 80, 84, 85, 90dB | Operating temperature & humidity | 0 ~ 50℃ (32 to 122℉)
10~90%RH |
||||
| Threshold level | 70 ~ 90dB (1dB step) | ||||||
| Exchange rate | 3dB , 4dB , 5dB or 6dB | Storage Temperature & humidity | -10 ~ +60℃ (14 to 140℉)
10 ~ 75%RH |
||||
| High level Detector | 115dBA | ||||||
| Peak flag | 140dB | Power supply | 4pcs size AAA Alkaline Battery | ||||
| Measuring range | 70 ~ 140dBA | Battery life | 40 hours | 32 hours | |||
| Accuracy | ±1.0dB (ref 94dB @1KHz) | Dimensions | 106(L)×60(W)×34(H)mm | ||||
| RS-232 | Not provided | provided | Weight | approx. 350g (include batteries) | |||
| Real time clock | Not provided | provided |
Event |
Not provided |
Stores data up to 5 separate events | ||
| Resolution | 0.1dB | ||||||
| Frequency response | 20Hz～10KHz | Optional Sound Calibrator |
TES-1356 |
||||
| Accessories | Instruction manual , Carrying case, batteries, Calibration Screwdriver (TES-1354) | ||||||
| Accessories | Instruction manual , CD Software, RS-232 Cable, Carrying case, batteries, Calibration Screwdriver (TES-1355) | ||||||
Occupational Noise Exposure Standard
| Country | Criterion level
dBA |
Exposure time | Exchange Rate | MAX SPL | Peak SPL | Allowable / per day |
| Germany | 90 | 8 | － | － | － | － |
| France | 90 | 40 | － | － | － | － |
| Belgium | 90 | 40 | 5 | 110 | 140 | 100 |
| U.K. | 90 | 8 | 3 | 135 | 150 | － |
| Ireland | 90 | － | － | － | － | － |
| Italy | 90 | 8 | 5 | 115 | 140 | － |
| Denmark | 90 | 40 | 3 | 115 | － | － |
| Sweden | 85 | 40 | 3 | 115 | － | － |
| Canada | 90 | 8 | 5 | 115 | 140 | － |
| Australia | 90 | 8 | 3 | 115 | － | － |
| Japan | 85 | 8 | 9 | － | － | － |
| Taiwan | 90 | 8 | 5 | 115 | 140 | － |
