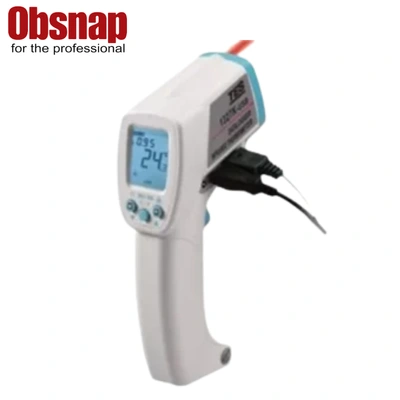

TES-1327KUSB Infrared Thermometer (USB)

A dual-function thermometer combining infrared and K-type probe measurements, suitable for high-accuracy temperature monitoring in industrial, laboratory, and field environments. Offers USB connectivity for easy data transfer.

  • Dual Measurement Range:
  • Infrared: -35°C to 500°C (-31°F to 932°F)
  • K-type: -150°C to 1350°C (-238°F to 1999°F)
  • Accuracy & Resolution: ±2% reading or ±2°C for IR; K-type accuracy varies with range, resolution 0.1°C/°F
  • Data Memory & Connectivity: Automatic storage up to 10,000 readings, manual 99 sets, USB interface for PC/data transfer
  • Features & Power: Laser aiming, adjustable emissivity, max/min recording, alarms, powered by 9V battery, approx. 100 hours use

Description

The TES-1327KUSB is a dual-function thermometer combining an infrared thermometer and a K-type contact thermometer for versatile temperature measurements. The infrared sensor measures temperatures from -35°C to 500°C (-31°F to 932°F) with a resolution of 0.1°C/0.2°F, an accuracy of ±2% of reading or ±2°C, and an adjustable emissivity range of 0.17 to 1.00. It features laser targeting, a 12:1 optics ratio, and a backlit LCD display for precise and easy readings on small or distant targets. The K-type thermometer supports a wider range from -150°C to 1350°C (-238°F to 1999°F), with high accuracy across different temperature ranges, making the device suitable for both low- and high-temperature applications.

Designed for data-intensive tasks, the TES-1327KUSB can store up to 10,000 readings automatically and 99 readings manually, with selectable °C/°F display, maximum/minimum tracking, and dual thermometer readouts. It includes audible and visual alarms, auto power-off after 15 seconds, and is powered by a single 9V battery, offering up to 100 hours of use when laser and backlight are off.

Features

  • °C / °F temperature selection.
  • LCD display with backlight. Laser aiming.
  • The maximum/minimum function.
  • Manual data storage and retrieval. (99 sets)
  • Dual thermometers and displays Emissivity adjustable.
  • Alarm both audible and visible.
  • Automatic data storage (10000 sets). The USB interface.

Specifications

INFRARED THERMOMETER
Display Backlight LCD display
Measurement Range -35℃ ~ 500℃ (-31℉ ~ 932℉)
Resolution 0.1℃ / 0.2℉
Accuracy ± 2% reading or ± 2℃
Spectral Response 6 ~ 14μm
Field of View 12:1 optics ratio with a 1” min target
Emissivity 0.17 ~ 1.00
Sighting Laser marker < 1mw
  • K-TYPE THERMOMETER
  • Measurement Range:- 150℃ ~ 1350℃ (-238℉~1999℉)
    Function Resolution Range Accuracy




    0.1℃

    -150℃~0℃ ±( 0.2%rdg + 1.0℃)
    0℃~200℃ ±( 0.1%rdg + 1.0℃)
    1℃ 200℃~1350℃ ±( 0.2%rdg + 2℃)




    0.1℉

    -238℉~32℉ ±( 0.2%rdg + 2℉)
    32℉~200℉ ±( 0.1%rdg + 2℉)
    1℉ 200℉~1999℉ ±( 0.2%rdg + 4℉)
Ø GENERAL SPECIFICATIONS
Data memory capacity Auto : 10000 sets

Manual : 99 sets (Direct reading from LCD display)

Auto power off approx. 15 sec
Battery Life Approx. 100 hours (laser pointer and backlight aren’t

on use) (Alkaline)

Power Source One 9V cell (ANSI/NEDA-1604A, IEC-6LR61)
Operating / Storage

Condition

0℃ ~ 50℃ (32℉ ~ 122℉) below 80%RH

-10℃ ~ 60℃ (14℉ ~ 140℉) below 70%RH

Dimensions 172mm× 118mm × 46mm
Weight 220g
Accessories Instruction manual, Battery, K-type thermocouples,

USB Cable, CD Software
