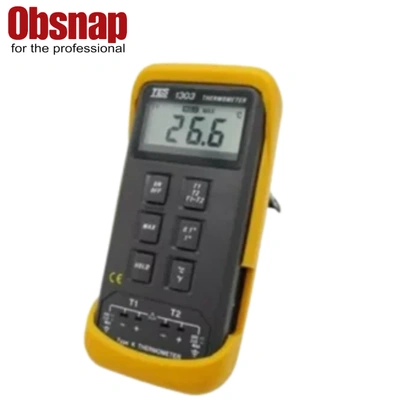

TES-1300 / TES-1303 Thermometer

Product Features:

Switchable Type “K” Thermocouple Input Resolution 0.1°/ 1° with switching between °C and °F
Maximum Holding Power Hold Data Function
Aux output JACKS WITH ROOM TEMPERATURE COMPENSATION
T1 and T2 dual-point displays (1303)
Differential measurement T1 – T2(1303) Flip-up stand

Measuring Rang	-50°C ~ 1300°C, -50°F ~ 1999°F
Sensor	K Type Thermocouple
Input	Single Channel / Dual Channel
Resolution	-50°C ~ 199.9°C…… 0.1°C -50℉ ~ 199.9°F…… 0.1°F (Others 1°C/1°F)
Accuracy	-50°C ~ 199.9°C…0.3%rdg + 1°C -50°F~ 199.9°F…0.3%rdg + 2°F -50°C ~ 1000°C…0.5%rdg + 1°C -50°F ~ 1999°F…0.5%rdg + 2°F 1000°C ~ 1300°C…0.75%rdg + 1°C (apply to mainframe only at 23°C ± 5°C)
Auxilitary Outputs (for Data Recording)	1mV/°C (°F)…at 0.1°C/0.1°F range 0.1mV/°C (°F)…at 1°C/1°F range
Temperature Coefficient	Less that 0.1 times the applicable accuracy specification per °C (°F)
Input Protection	60V DC or 24 Vrms AC maximum input voltage on any Combination of input Connector
Sampling Rate	2.5 times/sec
Operating Conditions	0°C ~ 50°C (32°F ~ 122°F) 0 ~ 80% R.H.
Power Source	One 9V battery (006P or IEC6F22)
Size/Weight	135mm(L)×72mm(W)×31mm(H) / 235g
Battery Life	200 hours (1300) / 100 hours (1303) (Alkaline Battery)
Accessories	Battery, Instruction, Manual
