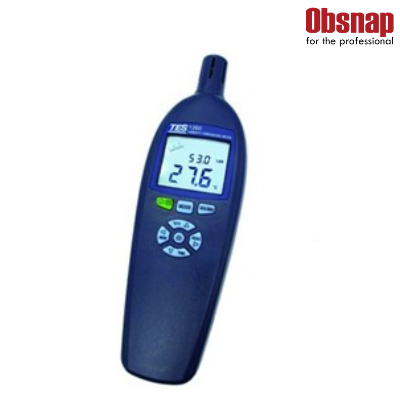

TES- z1260 Humidity Temperature Meter

The TES-1260 is a compact, handheld meter for measuring temperature and humidity with high precision. It features dual LCD displays, dew point and wet bulb calculations, data logging, and an easy-to-read backlit screen, making it suitable for environmental monitoring in labs, storage, and field applications.

  • Measurement Range & Accuracy: Temperature -20°C to 60°C, Humidity 1%–99% RH; Humidity ±3–5% RH, Temperature ±0.4–0.8°C.
  • Data Logging: Manual recording of up to 99 data sets directly from the LCD display.
  • Features: Dew point & wet bulb calculation, MAX/MIN with time stamp, °C/°F selectable, LCD backlight.
  • Power & Portability: Powered by a 9V battery with approx. 300 hours battery life; compact size (193×59×26mm) and lightweight (140g).

Description

The TES-1260 Humidity/Temperature Meter is a precise, handheld instrument designed for accurate monitoring of both temperature and relative humidity in various environments. With a measuring range of -20°C to 60°C (-4°F to 140°F) for temperature and 1% to 99% RH for humidity, it provides high-resolution readings of 0.1°C/°F and 0.1% RH. The device features dual LCD displays, allowing users to view temperature and humidity simultaneously, along with functions for dew point and wet bulb calculation. Its robust accuracy ensures reliable results: ±0.4°C for most temperature readings and ±3% RH for humidity in standard conditions.

Equipped with manual data storage for up to 99 readings and a fast sampling rate of one reading per second, the TES-1260 is ideal for environmental monitoring in laboratories, HVAC systems, greenhouses, and industrial applications. The meter is lightweight and compact (193 × 59 × 26 mm, 140 g), powered by a 9V battery providing up to 300 hours of operation. Additional features include MAX/MIN readings with time stamps, °C/°F switchable units, LCD backlight, and automatic power-off, making it a convenient, reliable, and portable solution for accurate humidity and temperature measurement.



Features

  • Dual LCD displays are available. Dew Point Calculation. Reading with a wet bulb
  • LCD backlight display
  • MAX/MIN and Time Stamp Data Hold is a function.
  • °C / °F temperature switchable.
  • DATA storage and retrieval. (99 LCD display readings) Power off automatically.

Specifications

  • Measuring Range Temperature: -20°C ~ 60°C (-4°F ~ 140°F)

    Humidity : 1%RH ~ 99%RH

    Resolution 0.1°C /0.1°F /0.1%RH










    Accuracy

    Humidity: ±3%RH (at 25℃, 20 to 80% RH)

    ±4%RH (at 25℃, 10 to 20% RH and 80 to 90%

    RH).

    ±5%RH (at 25℃, 0 to 10% RH and 90 to 100%

    RH).

    Temperature: ±0.4℃(at +5℃ to +60℃)

    ±0.8℃(at -20℃ to 5℃ and +60℃ to +80℃)

    ±0.8℉(at +41℉ to +140℉)

    ±1.6℉(at -4℉ to 41℉ and +140℉ to +176℉)

    Data Memory

    capacity

    Manual recording: 99 data sets.

    (Direct reading from LCD display.)

    Sampling Rate 1 times per second.
    Operating Conditions 0°C ~ 60°C (32°F ~ 140°F) & below 99% R.H. (no

    condensation)

    Power Source 9V Battery
    Battery Life Approx. 300 hours.
    Size & Weight 193mm(L) × 59mm(W) × 26mm(H) / 140g
    Accessories Instruction manual, Battery.
