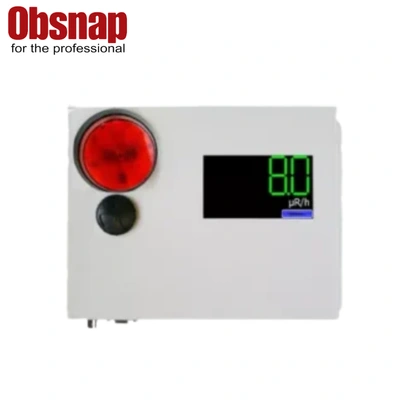

Radiation Area Monitors-AM-2×2 Radiation Area Monitor

Detector

2X2 Nal(Tl) Scintillation Probe

Custom Probe Options Available. Tell us about your application and we can recommend the best probe options for your needs.

Energy Range

30 KeV – 2 MeV

Sensitivity

Approximately 9000 CPS/mR/hr (137 Cs)

Operating Range

0.1 to 2 mR/hr (0.1 to 20 µSv/hr)

Response

Varies automatically from 20 seconds to 2 seconds

Touch Screen Display

4.3 inch TFT 480×272 touch screen display with user friendly Programmable Units of Measurement and Audio and Visual Alarms. 5-digit LED display with 3 cm (1.5 in.) character height. 65K true colors capable of displaying full color images, animations, icons.

Base Units

Can display in µR/hr, mR/hr, µSv/hr, mSv/hr, CPM, KCPM, CPS, KCPS,

Base unit Settings

Settings for Base Units, Alarms and Calibration Information can be accessed through the Touch Screen Display or through the software

Indicators

Ultra-Bright Strobe and Audible Alarm can trigger up to three relays with DB-9 serial connection. USB VCP for computer data logging, can also be used to control the unit with use of remote software for alarm indication and acknowledgment (Silence by remote).

Ethernet

10 Base-T connection for use with remote software for alarm indication and acknowledgment (Silence by remote)

High Voltage

User adjustable from 200 to 1200 volts

Power

12 VDC wall mount adapter included

Battery Life

Typically 6 hours in non-alarm condition; 5 hours in alarm condition

Battery Charger

SLA Battery is continuously trickle charged when the instrument is connected to line power and turned on

Temperature Range

-10° to +50°C (14° to 122°F)

Humidity

10% to 70% Non-Condensing.

Size

20.3 x 28.6 x 10.8 cm (8 x 11.25 x 4.25 in.)

Construction

Easy mount steel enclosure

Includes

Management software for use with networked area monitors, Base Unit, Power Supply, Mounting Clips, C to C Cable.

Options

External Strobe and Horn, NIST Calibration, Rugged external mounting enclosure.



Rugged case for wall mounting external detectors for area, room, and portal monitoring. Size 10.14” x 8.26” x 4.13″
