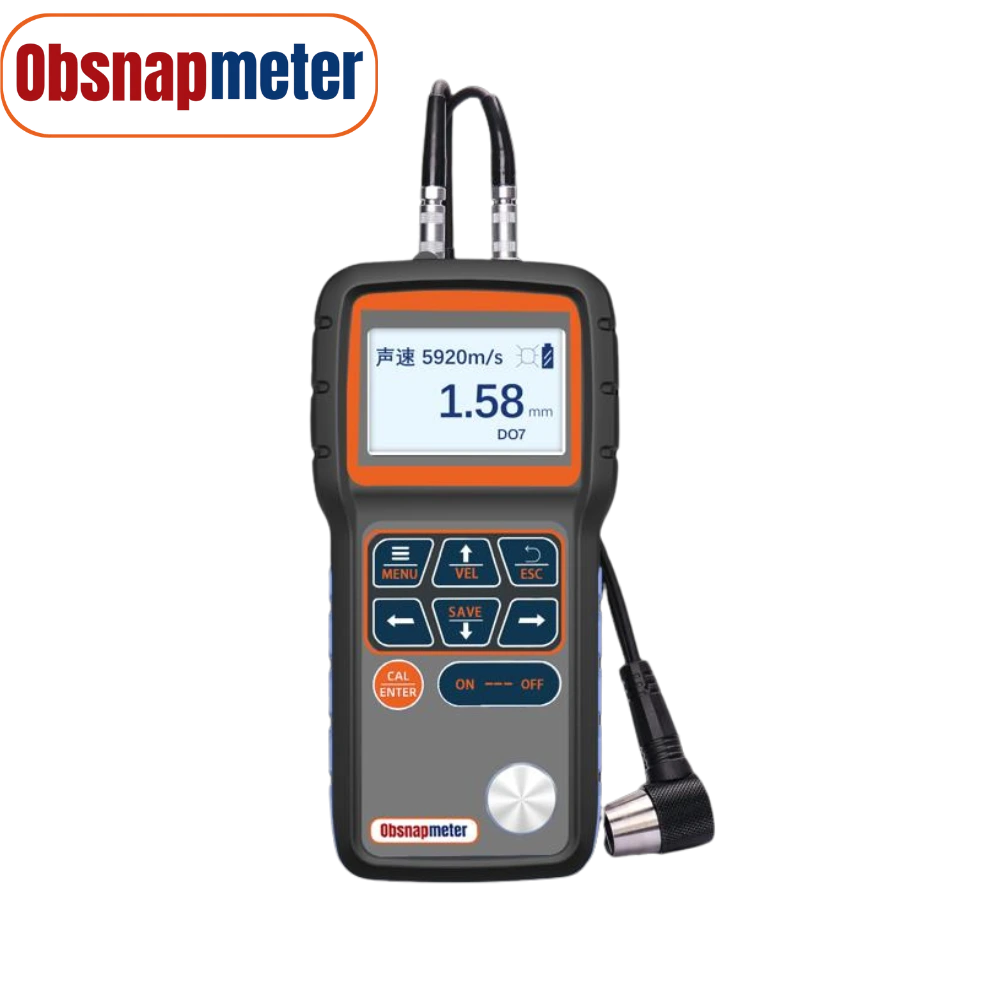

Obsnapmeter U110

-Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials

-Can collocate variety different frequencies,wafer sizes of probes

-Sound Velocity Calibration function as a known thickness

-Coupling status indicator showing the coupling status

-EL backlight, and convenience to use under dark environment

-Have the battery indicator function, can real-time display the remaining power

-Auto sleep and auto power off function to conserve battery life

-Smart, portable,high reliability, suitable for bad environment, resist to vibration, shock and electromagnetic interference

Description

Feature Specification
Display 128×64 LCD with LED backlight
Measuring Range (0.75–600) mm (steel)
Velocity Range 1000–9999 m/s
Resolution 0.01 mm
Measuring Accuracy ±(0.5%H + 0.04 mm)  H is thickness value
Measurement Cycle Single point measurement, 6 times per cycle
Calibration Function Zero calibration and two-point calibration
Storage 40 saved data values
Power Source 2 × 1.5V AA batteries
Working Time More than 50 hours (with LED backlight off)
Outline Dimensions 145 mm × 74 mm × 32 mm
Weight 245 g
