Description

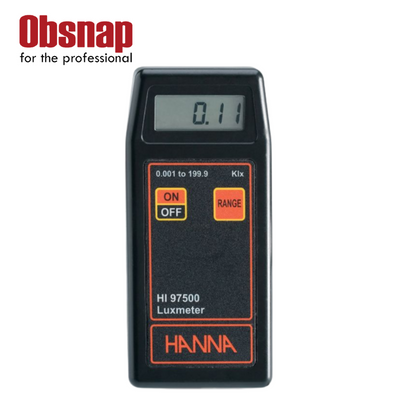

Illuminance, also known as the light flux, can be measured in a specific region using a lux meter. The HI97500 is a compact lux meter with a durable and water-resistant body for frequent outdoor usage. It is designed to measure light easily and precisely. With the help of a fixed 1.5 m coaxial connection, the instrument is equipped with a light sensor that enables measurements to be made at a distance without the operator’s interference.
Features at a Glance
Multiple Measurement Ranges – By simply pressing the RANGE key, users can switch among three ranges to choose the best resolution according to the environment being tested.
Auto-off Feature – To conserve battery life of the meter, HI97500 automatically turns off after 7 minutes of inactivity.
Low Battery Indicator – When the battery level is weak, a “V” symbol on the LCD blinks to indicate a low battery condition.
| SKU | HI97500 |
|---|---|
| Product Name | Portable Lux Meter – HI97500 |
| Quote Required | Yes |
| Lux Range | 0.001 to 1.999 Klux; 0.01 to 19.99 Klux; 0.1 to 199.9 Klux |
| Lux Resolution | 0.001 Klux; 0.01 Klux; 0.1 Klux |
| Lux Accuracy | ±6% of reading ±2 digits |
| Lux Sensor | human-eye-response silicon photodiode with 1.5 m coaxial cable (fixed) |
| Battery Type/Life | 9V / approximately 200 hours of continuous use; auto-off after 7 minutes of non-use |
| Environment | 0 to 50°C (32 to 122°F); RH max 100% |
| Dimensions | 164 x 76 x 45 mm (6.5 x 3.0 x 1.8’’) |
| Weight | 180 g (6.3 oz) |
| Ordering Information | HI97500 is supplied with battery and instruction manual. |
