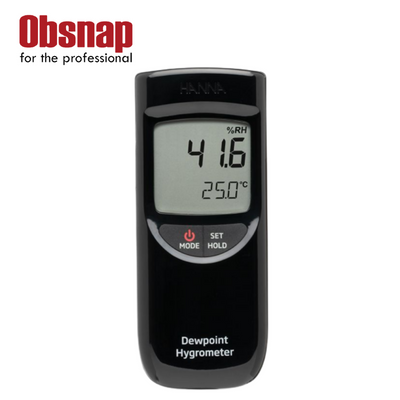

Hanna Instruments HI9565 Portable Thermohygrometer with Dewpoint

The HI9565 is a rugged, portable thermohygrometer designed to measure temperature, relative humidity (RH), and dew point in challenging industrial and environmental conditions. Its HI706023 TFPC humidity probe provides accurate and stable readings with stored calibration data. The meter features a HOLD button, auto-off, and Battery Error Prevention System (BEPS) for reliable operation. Compact and user-friendly, it is suitable for both field and bench use.

  • Durable TFPC Humidity Probe (HI706023) with calibration microchip for consistent accuracy
  • HOLD Button to freeze readings on the display for convenient monitoring
  • Auto-off Feature selectable at 8 or 60 minutes to save battery
  • Battery Error Prevention System (BEPS) ensures reliable measurements

Description

The HI9565 thermohygrometer delivers precise measurements of temperature (-10 to 60°C / 14 to 140°F), relative humidity (0–100% RH), and dew point (-20 to 60°C / -4 to 140°F) with high resolution and accuracy. Its HI706023 probe, a thin-film polymer capacitive (TFPC) sensor, has a perforated cap for fast, stable readings and a microchip storing calibration data. When connected to another compatible hygrometer, the probe transfers its calibration automatically, eliminating the need for recalibration. Users can easily switch between temperature, RH, and dew point modes, and select °C or °F readouts using the slide switch.

Designed for convenience and reliability, the HI9565 includes a HOLD button to freeze readings, a user-selectable auto-off to conserve battery, and a Battery Error Prevention System (BEPS) to prevent weak batteries from affecting measurements. Lightweight and compact, it can be comfortably handheld or placed on a table. Running on three AAA batteries, it offers approximately 10,000 hours of continuous use, and operates reliably in 0–60°C with up to 98% non-condensing RH.

Features

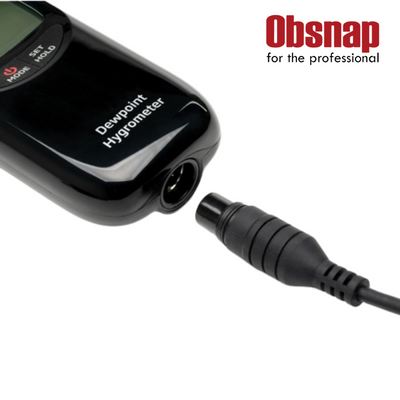

  • Durable TFPC Humidity Probe (HI706023): Thin-film polymer capacitive sensor with ABS body and perforated cap for rapid, stable measurements. Built-in microchip stores calibration data.
  • Temperature, RH, and Dew Point Modes: Easily switch between measurement modes with the RANGE button. Temperature displayed in °C or °F.
  • HOLD Button: Freeze readings on the LCD while still viewing meter status.
  • Auto-off Feature: User-selectable auto-off at 8 minutes, 60 minutes, or disabled to conserve battery life.
  • Battery Error Prevention System (BEPS): Detects weak batteries to ensure reliable measurements.
  • RH Range: 0–100% RH, Resolution: 0.1% RH, Accuracy: ±2.5% (0–90%), ±3.5% (outside)
  • Dew Point Range: -20 to 60°C / -4 to 140°F, Resolution: 0.1°C / 0.1°F, Accuracy: ±2°C / ±4°F (50–85% RH & 15–40°C), ±4.5°C / ±9°F (outside)
  • Temperature Range: -10 to 60°C / 14 to 140°F, Resolution: 0.1°C / 0.1°F, Accuracy: ±0.4°C / ±0.8°F
  • Probe Cable: 1 m (3.3’) DIN connector included.
  • Battery Type/Life: 1.5V AAA (3), ~10,000 hours continuous use.
  • Dimensions: 154 x 63 x 30 mm; Weight: 196 g.
  • Operating Environment: 0–60°C; RH max 98% non-condensing.
  • Supplied with HI706023 probe, 3 AAA batteries, and instruction manual.

Specifications

More Information
SKU HI9565
Product Name Thermohygrometer with Dewpoint – HI9565
Quote Required Yes
RH Range 0.0 to 100.0% RH
RH Resolution 0.1% RH
RH Accuracy ±2.5% RH (0 to 90% RH); ±3.5% RH (outside)
Dew Point Range -20.0 to 60.0°C / -4.0 to 140.0°F
Dew Point Resolution 0.1°C / 0.1°F
Dew Point Accuracy ±2°C /±4°F (50 to 85 % RH and 15 to 40°C); ±4.5°C /±9°F (outside)
Temperature Range -10.0 to 60.0°C /14.0 to 140.0°F
Temperature Resolution 0.1 °C / 0.1 °F
Temperature Accuracy ±0.4 °C /±0.8 °F
Thermohygrometer Probe HI706023 thin-film polymer capacitive (TFPC) humidity probe, ABS body, perforated cap, internal temperature sensor with DIN connector and 1 m (3.3’) cable (included)
Automatic Shut-Off user selectable 8 minutes, 60 minutes, or disabled
Battery Type/Life 1.5V AAA (3) / approximately 10,000 hours of continuous use
Environment 0 to 60°C (32 to 140°F); RH max 98% non-condensing
Dimensions 154 x 63 x 30 mm (6.1 x 2.5 x 1.2”)
Weight 196 g (6.91 oz.)
Ordering Information HI9565 is supplied with HI706023 relative humidity probe, 1.5V AAA batteries (3), and instruction manual.
