Hanna Instrument – HI3812 Total Hardness Chemical Test Kit

The HI3812 is a complete chemical test kit for measuring total hardness in water using the EDTA titration method. The kit determines calcium and magnesium concentrations in the ranges 0.0–30.0 mg/L and 0–300 mg/L CaCO₃ with high accuracy. All necessary materials—including buffer, indicator, EDTA titrant, beakers, and pipette—are provided, enabling up to 100 tests. The HI3812 is ideal for water quality monitoring, helping to prevent scale formation and maintain water system efficiency.

  • Measurement Type: EDTA titration (colorimetric)
  • Total Hardness Range: 0.0–30.0 mg/L; 0–300 mg/L CaCO₃
  • Number of Tests: 100
  • Purpose: Quantitative determination of water hardness, calcium, and magnesium

Description

The HI3812 Total Hardness Test Kit provides a reliable method for measuring water hardness by titrating calcium and magnesium ions with EDTA. The sample is first buffered to the correct pH, and calmagite indicator is added, forming a red complex with the metal ions. EDTA is then titrated into the sample until all free ions are bound, at which point the indicator changes color from red to blue, signaling the endpoint. The total hardness is calculated based on the titrant volume, providing readings with 0.3 mg/L resolution for low-range samples and 3 mg/L resolution for high-range samples.

Monitoring total hardness is essential because excessive calcium and magnesium can cause scaling in pipes, reduce the effectiveness of soaps, and damage industrial equipment. The HI3812 kit includes all consumables required for the test, and replacement reagents (HI3812-100) can be ordered when supplies run out, making it a cost-effective solution for ongoing water hardness testing.

Features

  • Product Type: Total Hardness Test Kit
  • Measurement Method: EDTA titration
  • Indicator: Calmagite (color change red → blue)
  • Total Hardness Range: 0.0–30.0 mg/L; 0–300 mg/L CaCO₃
  • Resolution: 0.3 mg/L (low range); 3 mg/L (high range)
  • Number of Tests: 100
  • Package: Complete kit with buffer, indicator, EDTA, beakers, and syringe

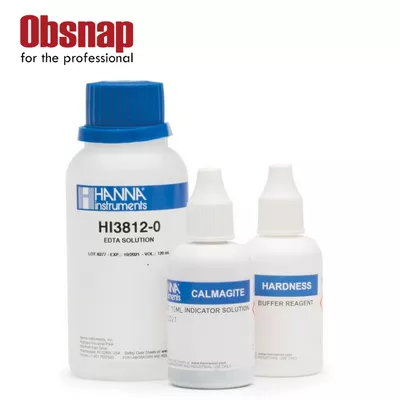

  • Replacement Reagents: HI3812-100
  • SKU: HI3812

Specifications

SKU HI3812
Product Name Total Hardness Chemical Test Kit – HI3812
Quote Required Yes
Hardness, Total Measurement Type titration
Hardness, Total Range 0.0 to 30.0 mg/L CaCO₃; 0 to 300 mg/L CaCO₃
Hardness, Total Resolution 0.3 mg/L (0.0 to 30.0 mg/L range); 3 mg/L (0 to 300 mg/L range)
Hardness, Total Method EDTA
Hardness, Total Number of Tests 100
Weight 460 g (1 lb.)
Dimensions 200x120x60 mm (7.9×4.7×2.4″)

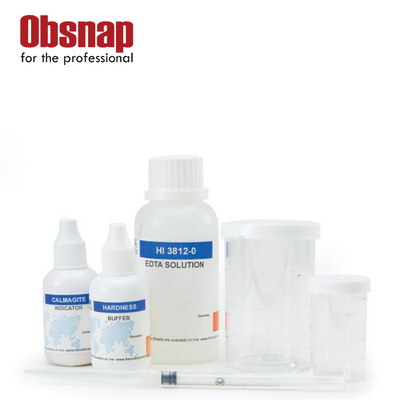

Ordering Information HI3812 test kit comes with 30 mL hardness buffer, 10 mL calmagite indicator, 120 mL EDTA solution, 20 mL plastic beaker with cap, 50 mL plastic beaker with cap, and 1 mL syringe with tip.
