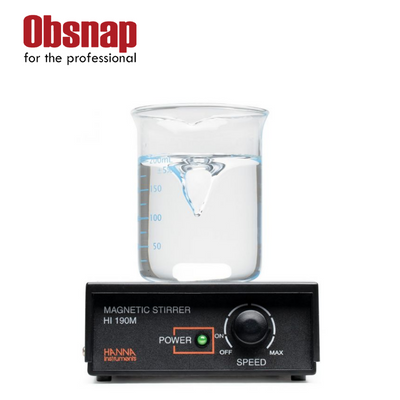

Hanna Instrument – HI190M Magnetic Mini-Stirrer (12VDC)

The HI190M-0 Magnetic Mini-Stirrer (12VDC) is a compact, economical laboratory stirrer designed to ensure uniform sample mixing before electrochemical measurements. It improves sensor response time and reading stabilityby maintaining consistent agitation and temperature distribution. Featuring adjustable speed control (100–1000 rpm)and Speedsafe™ motor protection, it delivers safe and precise performance. With a 1-liter stirring capacity and durable ABS plastic housing, it is ideal for space-limited lab environments.

  • Speed Range: 100 to 1000 rpm
  • Maximum Stirring Capacity: 1 Liter (0.26 gallons)
  • Speedsafe™ Technology for Motor Protection
  • Compact Design (120 x 120 x 45 mm) – Lightweight 610 g

Description

The HI190M-0 Magnetic Mini-Stirrer is specifically engineered to provide consistent and uniform mixing of test samples prior to electrochemistry measurements. Proper agitation ensures homogeneous temperature and composition, which significantly improves the accuracy and stability of sensor readings. Its integrated electronic speed control allows users to precisely adjust stirring speed, making it suitable for various laboratory applications requiring controlled sample preparation.

Designed with practicality in mind, this mini-stirrer features a space-saving footprint and durable ABS plastic coverresistant to accidental chemical spills. The built-in LED power indicator provides clear operational visibility. Its advanced Speedsafe™ mechanism prevents motor damage by automatically regulating speed when viscosity changes or when the load is removed, offering enhanced safety and reliability compared to conventional stirrers.

Features

  • Model: HI190M-0 Magnetic Mini-Stirrer (12VDC)
  • SKU: HI190M-0
  • Maximum Stirring Capacity: 1 Liter (0.26 gallons)
  • Speed Range: 100 to 1000 rpm
  • Speed Control: Electronic adjustable control
  • Speedsafe™ Technology: Built-in motor protection system
  • Power Supply: 12 VDC (sold separately)
  • Environment: 0 to 50°C (32 to 122°F), RH max 95% non-condensing
  • Dimensions: 120 x 120 x 45 mm (4.8 x 4.8 x 1.8”)
  • Weight: 610 g (1.3 lbs.)
  • Cover Material: Durable ABS plastic
  • Installation Category: II
  • Included Accessories: (1) Micro stir bar and instructions
  • LED Indicator: Power-indicating light
  • Design: Compact, lightweight, and space-saving

Specifications

SKU HI190M-0
Product Name Magnetic Mini-Stirrer (12VDC) – HI190M
Quote Required Yes
Power Supply 12 VDC (sold separately)
Environment 0 to 50°C (32 to 122°F), RH max 95% non-condensing
Dimensions 120 x 120 x 45 mm (4.8 x 4.8 x 1.8”)
Weight 610 g (1.3 lbs.)
Ordering Information HI190M-0 magnetic mini-stirrer is supplied a micro stir bar (1) and instructions.
Maximum Stirring Capacity 1 liter (0.26 gallons)
Minimum Speed 100 rpm
Maximum Speed 1000 rpm
Installation Category II
Cover Material ABS plastic
