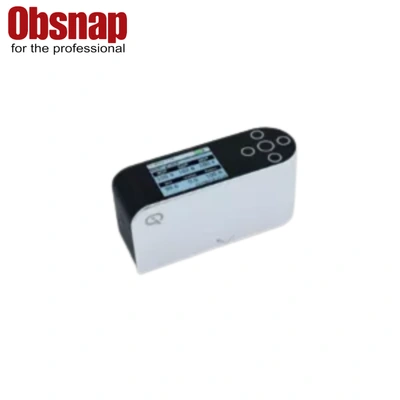

Obsnapmeter – CS-300SE Series Gloss Meter

The CS-300 SE Gloss Meter is a high-precision instrument for measuring surface gloss in paints, inks, coatings, electroplating, plastics, and hardware industries. With a 60° universal measurement angle, fast measurement speed, and large data storage capacity, it ensures reliable and repeatable readings for both laboratory and on-site applications.

  • Accurate & Stable Measurement – Repeatability up to 0.2GU
  • Multiple Measuring Angles – 60° single-angle (CS-300 SE / CS-300S SE) or 20°/60°/85° triple-angle (CS-380 SE)
  • Fast Measurement Time – Less than 1–1.5 seconds
  • Large Data Storage – Up to 5000 measurement records

Description

The CS-300 SE Gloss Meter provides a precise 60° measurement angle, suitable for general gloss testing on medium-gloss surfaces. Equipped with Japanese sensors and American processing chips, the device ensures high repeatability accuracy and meets the JJG 696-2015 gloss meter standard. Its dual optical path technology stabilizes readings even on small or uneven surfaces, making it ideal for quality control and laboratory applications.

Designed for ease of use, the meter features simple and statistical measurement modes, a 2.4-inch color display, and Type-C connectivity for data transfer. Powered by a 3000mAh lithium battery, it supports up to 100,000 measurements per full charge, while storing up to 5000 records, providing industrial-grade reliability and convenience for continuous testing.

Features

  • Accurate & Stable Measurement – Repeatability up to 0.2GU
  • Multiple Measuring Angles – 60° single-angle (CS-300 SE / CS-300S SE) or 20°/60°/85° triple-angle (CS-380 SE)
  • Fast Measurement Time – Less than 1–1.5 seconds
  • Large Data Storage – Stores up to 5000 measurement records
  • Measurement Modes – Simple Mode and Statistical Mode
  • High-Quality Sensors & Chips – Japanese sensors and American chips for reliable readings
  • Display – 2.4-inch color screen with 320×240 resolution
  • Battery – 3000mAh lithium battery, up to 100,000 measurements per full charge
  • Interface – Type-C for easy data transfer
  • Applicable Industries – Paints, inks, coatings, electroplating, plastics, hardware

Specifications

Model CS-300   SE CS-380 SE CS-300S SE
Measuring   Angle 60° 20°、60°、85° 60°
Measuring light spots(mm) 60°:9*15 20°:10*10;60°:9*15;85°:5*38 60°:2*3
Measuring range 60°:0-200GU 20°:0-200GU;60°:0-200GU;

85°:0-100GU

60°:0-200GU
Display resolution 0.1GU 0-100:0.1GU;大于100:1GU
Measurement repeatability accuracy※ 0-100GU:0.2GU;100-200GU:0.2%GU
Measurement mode Simple mode and statistical mode
Measurement accuracy Meet the requirements of JJG   696-2015
Measurement time <1s <1.5s <1s
Data storage 5000 pieces of data
Volume 165*51*77mm(L*W*H)
Weight 400g
Language Chinese,English
Battery capacity 3000mAh   lithium battery
Electricity   level※※ Fully charged, can be used 100000   times Fully charged, can be used 60000 times Fully charged, can be used 100000   times
Interface Type-C
Screen size 2.4 inches(Screen resolution320*240)
Computer software Yes
Working temperature 0-40℃
Working humidity Less than 85%, no condensation
Accessory 5V/2A charging head, data cable,   manual, USB flash drive (upper computer software), calibration standard   board, third-party calibration certificate
Purpose Paint and ink, coatings,   electroplating, plastic electronics, hardware and other fields
