GL100

External Dimensions: 2.59″ x 3.93″ x 1.06″   Weight: ~4.58 oz  Built-in memory ~4.9MB and a microSD memory card port
Power Source: Battery (AA x2), USB bus-power (micro USB connector)

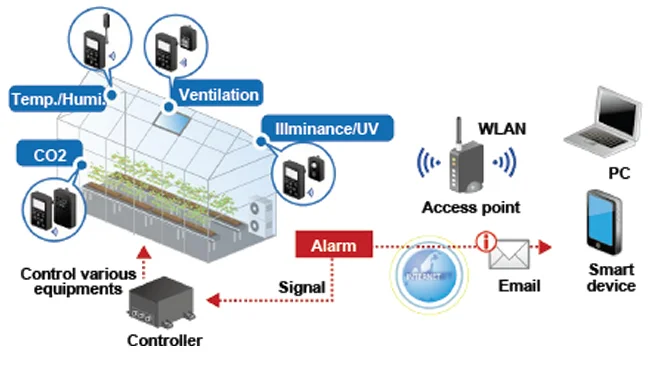

The GL100 data logger is compact, modular, available with wireless LAN and ability to trigger your controller in maintaining CO2, temperature, humidity and oxygen with accurate data logging.

PC and smart mobile device software available–with industry-specific software: agriculture, logistics, power.

Applications Benefiting from the GL100:

• Monitor and track agriculture
• Monitor greenhouse and hydroponics

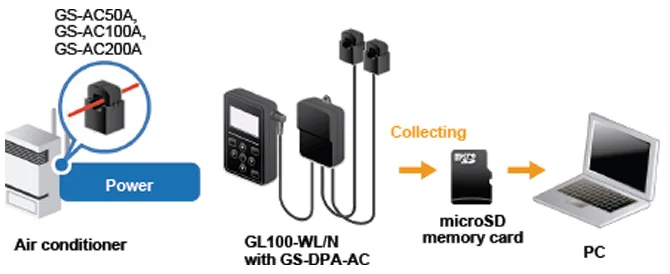

• Monitor and Test electrical appliance and office equipment
• Food processing

Note: The GL100-WL uses radio waves in the 2.4GHz band. It may interfere with other devices that use radio waves in the same frequency band. Some actions are required to avoid radio interference when necessary. This equipment can be used in the USA, Canada, EU, and Japan by the regulations of the Wireless Telegraphy Act.

SUFFICIENT CAPACITY OF DATA

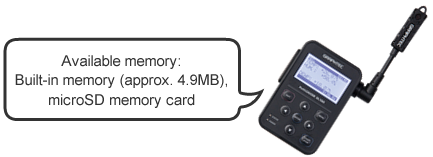

The captured data is able to save to the built-in memory or the microSD memory card. It has sufficient capacity of data.

DATA CAPTURING TIME: Using with Temp/Humidity sensor (GS-TH) by 1 minute sampling interval.

AVAILABLE BATTERY OPERATION

GL100 can be operated with batteries or USB bus-power.  The power of the GL100 is automatically switched between the battery and the USB bus-power.

Recommended power source for each combination of modules are listed below

* : The GS-DPA listed is a measurement that uses the branch adapter for GS.

A: Full operation

B: This works on alkaline batteries.

C: This works on alkaline batteries, but power consumption is relatively high, the operating time will be shorter.

D: Cannot be used as a power source

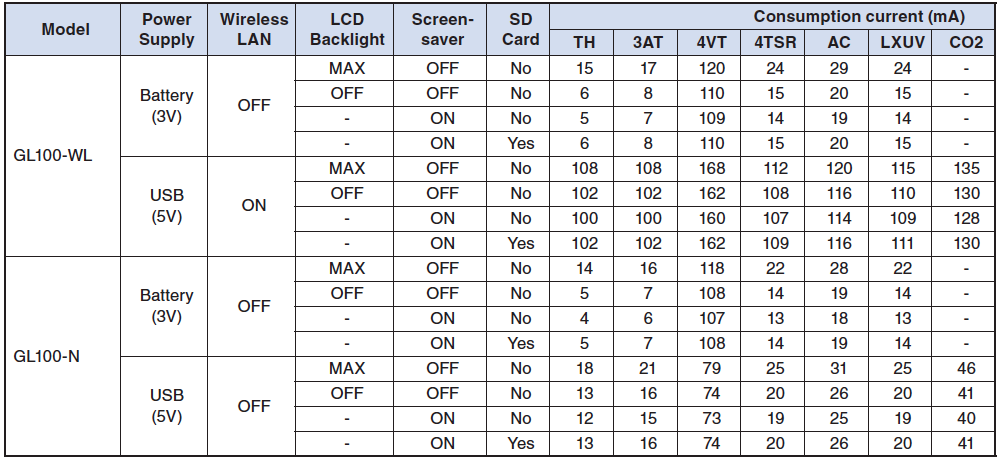

DC current consumption is as follows.  When driving in the batteries, use as a reference of battery consumption.

* The above value is the average value of the body + sensor.

* There is no change in consumption current by the sampling rate.

* The consumption current increases up to about 20 mA while accessing the SD card.

* When the CO2 sensor is used, the consumption current increases periodically (about two-second intervals) about 500 mA.

Recommended power source for the sensor module

Note:

*1: GS-DPA (Dual Port Adapter) is used for connecting two sensors.

*2: When GL100 is driven by the USB bus-power, power is automatically switched to battery after USB bus-power is down. If the capacity of the battery is low, the power of GL100 may be turned off. The battery is able to use as an auxiliary power of a power failure of the USB bus-power. In this case, it is recommended to install new battery to GL100.

*3: It is able to drive by battery. In this case, an operating time will be shorter because power consumption is relatively high.

*4: When AC adapter for the USB device is used, it is recommended to have power capacity of the 200mA except to use the GS-CO2 sensor. The power capacity of the 1A is required for using the GS-CO2 sensor.

RECORDING CONDITIONS

Recording destination: internal memory (calculated by 4.9 MB)

Sampling: 30 sec. or 1 min.

Max. recording time = (Max. capacity / Record length) x Sampling interval

FUNCTIONS OF EMAIL

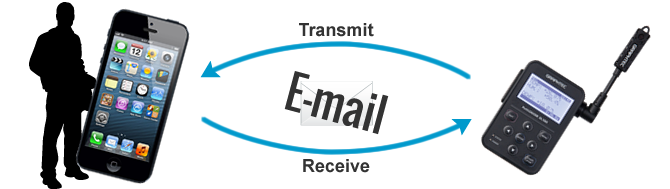

The GL100-WL is able to transferring email and receiving email. The warning and other messages are transferred from the GL100-WL. The command of simple control for the GL100-WL can be received.  You do not need to sensitive for the measured values at all times because you are able to have the better understanding of the situation by receiving email from the GL100.

• Warning message for the captured data (When the alarm occurs, message is sent via email.)
• Summary data (Sending summary data in specified period that are the current value, value of maximum, minimum, and average.)
• Low battery warning (If the level of dry cell is low, message is sent.)
• Confirmation of setting change (When the settings has been changed, message is sent.)

You can change simple setting using the software for the smart drive. The simple setting is the start/stop, sampling and alarm. (The setting change commands are transferred using the email function.).

• Setting of capture condition in the GL100 can be changed by receiving command by email.
• Setting change may be delayed. It varies by condition of communication for the email.

TYPICAL APPLICATIONS

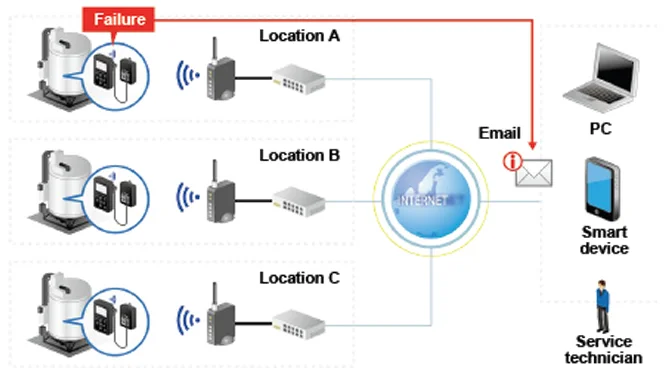

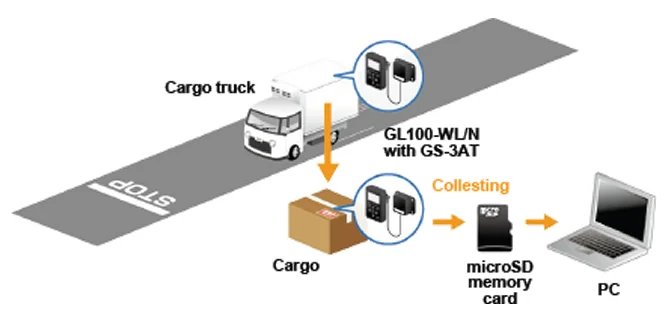

The typical applications using the GL100 series are the following. GL100 series can be used for a variety of purposes in a wide variety of applications.
