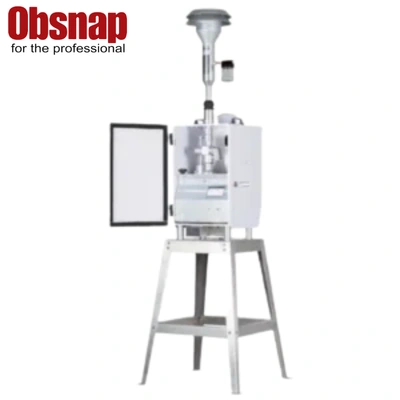

E-SEQ-FRM SEQUENTIAL REFERENCE PARTICULATE SAMPLER
Applications:
Categories: Climatic/Environment Inspection, Particle Counter
Description
Specifications:
Method | Multi-event, sequential sampling of ambient air onto filter media |
Regulatory Designations | US-EPA PM2.5 Reference Method (RFPS-0717-245)
US-EPA-PM10 Reference Method (RFPS-0717-246) US-EPA PM10-2.5 FRM Reference Method (RFPS-0717-247) Korea Certification (APSC1-2016-01) |
Filter Holders and Media | 47 mm filter For US-EPA PM2.5 and PM10-2.5 sampling: Teflon 2µm pore size membrane filter
(regulation required). For US-EPA PM10 reference sampling Pallflex TX-40 quartz filter and Teflon media. |
Sample flow | Active flow control for 16.67 LPM. Sampled volume reported under actual and standard
conditions |
Calibration | Temperature, barometric pressure and multi-point flow |
Internal Data Storage | More than 130 days of interval data with 5 minute time resolution 132 filter records |
Data Input/Output | Keypad/display for data retrieval and programming. RS232, USB serial and USB flash drive
interface for data download |
Operational Temperature | -30°C to +50°C |
Power Requirements Physical | 100-240 VAC 50/60 Hz 1.4 amps |
Dimensions (inches) without | System/Pump: 14.4 (w) x 14 (d) x 27 (h) Stand (at base) |
PM10 inlet attached | 24.5 (w) x 23.5 (d) x 29.6 (h) Total (at base) 23.5 (w) x 24.5 (d) x 56.6 (h) |
Weight: | System/Pump 45 lb. Stand 10.5 lb, PM10 Inlet 5.3 lb |
