Description

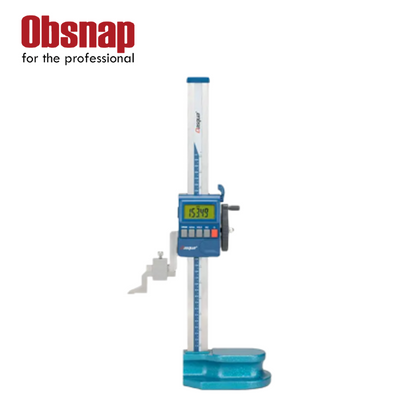

The Digital Height Gauge (Item No. 3130-4703) is engineered for precise dimensional measurement of mechanical components in production and inspection environments. Offering a measuring range of 0–300 mm (0–12″) with a high resolution of 0.001 mm (0.00005″) and ± 0.02 mm accuracy, it delivers reliable and repeatable results for critical measurement tasks. Larger models up to 600 mm (0–24″) are available, including versions with wireless transmission capability (3230 series).
Designed for durability and precision, the gauge features a wide and thick stainless steel beam, a sturdy base for stability, and a smooth slider-feed wheel that significantly enhances measuring control. The carbide-tipped scriberprovides sharp, clean marking lines, while the SPC data output function supports statistical process control integration. An optional dustproof shield adds protection in demanding workshop conditions.
Features
• Featuring a sizable, smooth slider-feed wheel that considerably enhances measuring accuracy
• A scriber with a carbide point for precise, crisp lines
• Wider and thicker stainless steel construction
• With output of SPC data
• Sturdy, robust beam and base
• An optional dustproof shield
Specifications
| Code |
Range |
Resolution |
Accuracy |
| 3130-4703 |
0-300/0-12″ |
0.001/0.00005″ |
0.02/0.0008″ |
| 3130-4716 |
0-600/0-24″ |
0.001/0.00005″ |
0.04/0.0015″ |
With Wireless Transmission
| Code |
Range |
Resolution |
Accuracy |
| 3230-4705 |
0-300/0-12″ |
0.001/0.00005″ |
0.02/0.0008″ |
| 3230-4710 |
0-600/0-24″ |
0.001/0.00005″ |
0.04/0.0015″ |
Product Name: Digital Height Gauge
Item Number: 3130-4703
Measuring Range: 0-300 / 0-12″
Graduation: 0.001 / 0.00005″
Accuracy: 0.02 mm / 0.0008’’
Application
The electronic height gauge is a tool for measuring the dimensions of various mechanical parts. The majority of the time, it is utilised in the workshop to quickly and easily measure production-level parts
