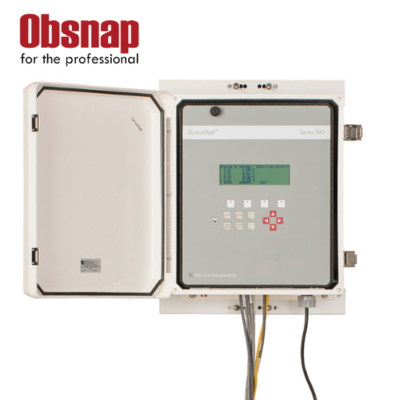

AutoMet 580 & 136 MultiMet Interface Module
Features:
AUTOMET 580
- Ethernet, MODBUS, 12 analogue outputs, USB, RS-232C, and RS-485 are all capable of strong communication.
- Averaging, maximum, minimum, delta, STD DEV, dewpoint, and other statistical computations.
- For measurements of the global horizontal & plane of the array, matched pyranometer inputs.
- For very precise and broad temperature readings, use the PT-100 platinum temperature inputs.
136 MULTIMET INTERFACE MODULE
- 12 analogue outputs and 8 analogue inputs.
- 3 MET or AIR sensors can be used as Met One digital sensor inputs.
- logging data.
- Different serial outputs
- RTU MODBUS.
- Sixteen-bit resolution
- Fully Field Modifiable and Configurable.
- Economical.
136 MULTIMET INTERFACE MODULE Specifications:
| PARAMETER | SPECIFICATION |
| Analog Sensor Inputs | 8 channel single ended 0 – 2.5 or 0 – 5 VDC user selectable, with 136 Multi- Met Interface Module Auto ID Sensor option
2 channel inputs for small signal solar radiation sensors 3 channel inputs for RTD platinum temperature sensors |
| Special Input | 2 channel frequency counters (wind speed frequency selectable as low or high range or low AC millivolt
1 channel rain gauge channel (de-bounced switch closure with excitation resistor to 5 volts) |
| Digital Sensor Inputs | Multiple Digital sensors, 8 channels max (Met One Instrument Sensors) |
| Voltage Outputs | 12 voltage output channels 16 bits unipolar
5.000VDC full scale (selectable to 1.000 or 2.5 VDC full scale) +/- 4 millivolts accuracy |
| Alarm Outputs | 2 alarm channels with N.O. relay contacts (max power 24 VDC @ 20 mA) |
| Communication | Ethernet serial port, 38400 baud fixed USB serial port shared with main port
Main RS-232 serial port, 1200-115200 baud, ASCII, N, 8, 1 Digital Sensor, RS-232, 9600 baud fixed RS-485 Extra port, RS-232, 1200-115200 baud |
| Communication Protocol | 7500 MetRecord Protocol for digital sensors and serial communications UIM serial report string
Modbus |
| Log Channels | 16 logging channels (combination of digital, analog measurements, and calculated values) |
| Logging Data Capacity | 1-minute data – 7.2 days 5-minute data -36 days 10-minute data – 72 days
15-minute data – 108 days 30-minute data – 216 days 1 hour – 433 days (1.2 years) |
| Power Requirements | 15 VDC ± 20%
50 mA or less (display off) 125 mA (display on) |
| Power Source | 120-240 VAC, 50-60 HZ to 15 VDC power supply (included) Solar panel array and battery (optional)
Battery and AC powered charger (optional) |
| Display | Backlit LCD with auto time-out 40-character width
Eight lines |
| Keypad | Four operation selection keys Four motion selection keys Four function selection keys |
| Environmental | Operating temperature range: -20°C to +60°C (extended range available) Humidity: 0-100%, non-condensing |
Physical Specifications
| PARAMETER | SPECIFICATION |
| Dimensions | 15.5 in (high) x 13.5 in (wide) x 7.0 in (depth) |
| Weight | 7.8 lbs (3.5kg) |
AUTOMET 580 Specifications:
| PARAMETER | SPECIFICATION |
| Analog Sensor Inputs | 8 channel single ended 0 – 2.5 or 0 – 5 VDC user selectable, with AutoMet Auto ID Sensor option
2 channel inputs for small signal solar radiation sensors 3 channel inputs for RTD platinum temperature sensors |
| Special Input | 2 channel frequency counters (wind speed frequency selectable as low or high range or low AC millivolt
1 channel rain gauge channel (de-bounced switch closure with excitation resistor to 5 volts) |
| Digital Sensor Inputs | Multiple Digital sensors, 8 channels max (Met One Instrument Sensors) |
| Voltage Outputs | 12 voltage output channels 16 bits unipolar
5.000VDC full scale (selectable to 1.000 or 2.5 VDC full scale) +/- 4 millivolts accuracy |
| Alarm Outputs | 2 alarm channels with N.O. relay contacts (max power 24 VDC @ 20 mA) |
| Communication | Ethernet serial port, 38400 baud fixed USB serial port shared with main port
Main RS-232 serial port, 1200-115200 baud, ASCII, N, 8, 1 Digital Sensor, RS-232, 9600 baud fixed RS-485 Extra port, RS-232, 1200-115200 baud |
| Communication Protocol | 7500 MetRecord Protocol for digital sensors and serial communications UIM serial report string
Modbus |
| Log Channels | 16 logging channels (combination of digital, analog measurements, and calculated values) |
| Logging Data Capacity | 1-minute data – 7.2 days 5-minute data -36 days 10-minute data – 72 days
15-minute data – 108 days 30-minute data – 216 days 1 hour – 433 days (1.2 years) |
| Power Requirements | 15 VDC ± 20%
50 mA or less (display off) 125 mA (display on) |
| Power Source | 120-240 VAC, 50-60 HZ to 15 VDC power supply (included) Solar panel array and battery (optional)
Battery and AC powered charger (optional) |
| Display | Backlit LCD with auto time-out 40-character width
Eight lines |
| Keypad | Four operation selection keys Four motion selection keys Four function selection keys |
| Environmental | Operating temperature range: -20°C to +60°C (extended range available) Humidity: 0-100%, non-condensing |
Physical Specifications
| PARAMETER | SPECIFICATION |
| Dimensions | 15.5 in (high) x 13.5 in (wide) x 7.0 in (depth) |
| Weight | 7.8 lbs (3.5kg) |
