Description
| Code | Range | Graduation | Style | A | B | C | D | E | Accuracy | Hysteresis |
| 5111-1105 | 0-10 | 0.01 | Flat Back | 8 | φ 58 | φ 8 | 18.5 | φ 55 | 0.017 | 0.003 |
| 5111-1205 | 0-10 | 0.01 | Lug Back | 8 | φ 58 | φ 8 | 18.5 | φ 55 | 0.017 | 0.003 |
Specifications

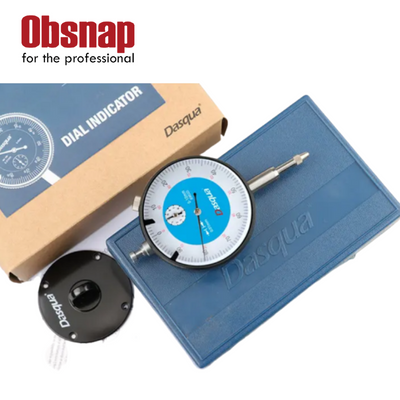

Product Name: Dial Indicator
Item Number: 5111-1105
Measuring Range: 0~10 mm / 0~2’’
Graduation: ±0.01 mm / 0.0005’’
Accuracy: 0.017 mm / 0.0005’’
Advantage Of DASQUA
• High quality material and precision machining process ensure product quality；
• A traceable QC system is worthy of your trust；
• Efficient warehouse and logistics management ensure your delivery time；
• A two-year warranty makes you without the worries behind；
Tips
Dial readings with three digits, such as 0-10-0, signify that the indicator has a balanced dial. Dial readings with two digits, such as 0-100, indicate that the dial has a continuous dial. Balanced dials are used to read the difference from a specific surface reference point. Continuous dials are used for direct readings and usually have a larger measurement range than balanced dials. Optional features include jeweled bearings for high sensitivity and accuracy, a revolution counter to measure overall change, waterproof, dustproof, shockproof, a white or black face, and reverse reading for depth or bore gage measurement.
Package Content
1 x Dial Indicator
1 x Protective Case
1 x Warranty Letter
