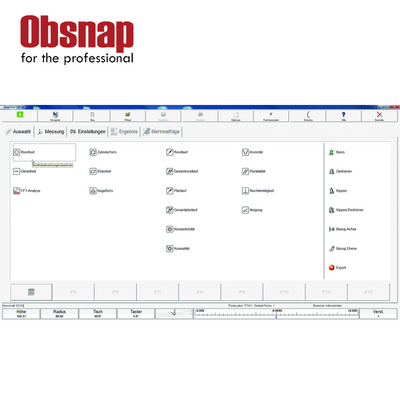

Description
| MarForm MMQ 150 | Item No. 5440752 | |
|---|---|
| Roundness deviation (µm+µm/mm measuring height) * | 0.015 + 0.0003 |
| Motorized measurement path Z (mm) | 250 |
| Straightness deviation / 100 mm measuring path (µm)**, Z-axis | 0.4 |
| Straightness deviation / total measuring range (µm)**, Z-axis | 1 |
| Parallelism deviation Z / C axis in scanning direction, measuring path (µm) | 1 |
| Measurement speed (mm/s), Z-axis | 0.5-30 |
| Positioning speed (mm/s), Z axis | 0.5-50 |
| Roundness deviation (µm+µm/mm measuring height) ** | 0.03 + 0.0006 |
| Axial run-out (µm+µm/mm measuring radius) * | 0.02 + 0.0001 |
| Axial run-out (µm+µm/mm measuring radius) ** | 0.04 + 0.0006 |
| Centering and tilting table | manually |
| Table diameter (mm) | 160 |
| Table load capacity, centric (N) | 200 |
| Speed (1/min) 50 Hz / 60 Hz | 1-6 |
| footer text | * Values as maximum deviation from reference circle LSC, filter 15 waves/circumference. ** All values according to DIN ISO 1101 at 20 °C ±1 °C in a vibration-free environment, filter 15 shafts/circumference LSC or 2.5 mm LSS, 5 revolutions 1/min or 5 mm/s and standard stylus arm with ball diameter 3 mm. Proof on the standard including error separation methods. Due to the large number of possibilities, only a few machines are described here as examples. The technical data of “your” MMQ is available from Mahr on request. |
