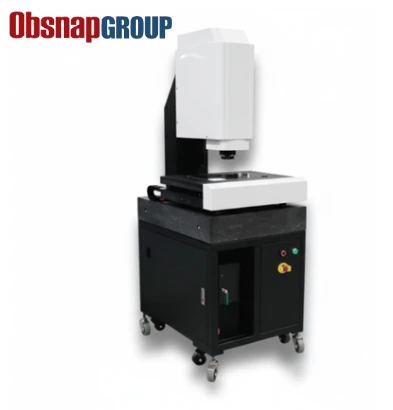

Video Measurement System Rental (NIMBUS Series – 300 / 400 / 500)
Models: NIMBUS 300 / NIMBUS 400 / NIMBUS 500
Type: Fully Automatic Video Measurement System
Purpose: Provides high-precision, non-contact dimensional measurement for components and assemblies.
Ideal For: Precision engineering, electronics, tooling inspection, mold and die verification, and quality control labs.
| Model | Measurement Range (XYZ) | X/Y Linear Accuracy | Z Accuracy | Net Weight | Dimensions (mm) |
|---|---|---|---|---|---|
| NIMBUS 300 | 300 × 200 × 200 mm | (2.0 + L/200) µm | (5.0 + L/100) µm | 320 kg | 850 × 630 × 1770 |
| NIMBUS 400 | 400 × 300 × 200 mm | (2.0 + L/200) µm | (5.0 + L/100) µm | 420 kg | 950 × 730 × 1770 |
| NIMBUS 500 | 500 × 400 × 200 mm | (2.3 + L/200) µm | (5.0 + L/100) µm | 620 kg | 1100 × 880 × 1770 |
| Component | Specification |
|---|---|
| Camera | 1/2″ GIGE color digital camera, 1.3 MP high-resolution
|

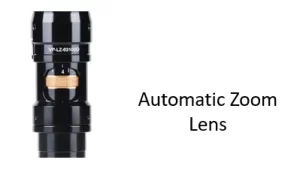

| Zoom Lens | 0.7× – 4.5× motorized auto zoom lens
|
| Magnification | 40× – 250× (monitor magnification) |
| Working Distance | 90 mm |

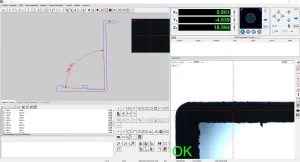

| Software | Inspect 3D Automatic Measurement Software
|
| Light Source Type | Specification |
|---|---|
| Surface Light (Ring Light) | White LED 3-ring, 8-region programmable illumination |
| Profile / Transmitted Light | White LED transmission light source |
| Lighting Control | Programmable 27°–75° lighting angle; effective shadow/glare control |
| Cooling System | Cold LED design prevents heat interference |
| Max. Magnification Lighting | High-brightness macro ring light |
| Speed | Measurement head movement up to 400 mm/s |
| Feature | Description |
|---|---|
| Granite Base & Pillar Structure | Ensures exceptional rigidity, vibration damping, and thermal stability for precise measurement. |
| Motorized High-Resolution Zoom Lens | Enables automatic optical adjustment without manual recalibration. |
| High-Speed GIGE Camera | Delivers real-time, distortion-free imaging with high data throughput. |
| Advanced LED Illumination | 3-ring, 8-division programmable lighting ensures even, glare-free visibility. |
| Automatic Pixel Calibration | One-time pixel correction guarantees measurement consistency when zooming. |
| Fast Motion Control | Motorized stages provide high repeatability and positioning accuracy. |
| Intelligent Light Adjustment | Adaptive brightness and angle control optimize surface contrast. |
| Data Export Capability | Exports results directly to CAD (DXF/DWG) or graphical data reports. |
| Feature | Description |
|---|---|
| Interface | Intuitive and user-friendly design for fast operation. |
| Measurement Functions | Supports geometric measurements, curve fitting, and feature recognition. |
| Complex Shape Analysis | Quickly measures and analyzes intricate contours and profiles. |
| Batch Measurement | Suitable for repeated inspection of large quantities of workpieces. |
| Geometric Tolerance Calculation | Automatic GD&T (Geometric Dimensioning & Tolerancing) analysis. |
| CAD Integration | Direct export to CAD formats (DXF, DWG). |
| Report Output | Diverse data reporting and graphical visualization options. |
