Thickness & Coating Measurement Rental
Obsnap offers rental of professional coating and ultrasonic thickness gauges for precise, non-destructive measurement of coatings and material thickness on metals, plastics, composites, and glass.
Rental Services / Thickness & Coating Measurement

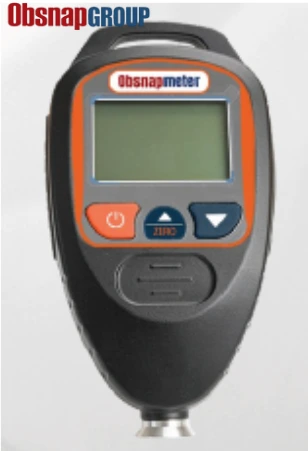

Coating Thickness Gauge Rental (ObsnapMeter C210)
Model: ObsnapMeter C210
Type: Dual-Use Magnetic & Eddy Current Coating Thickness Gauge
Purpose: Measures coating thickness on both ferrous (Fe) and non-ferrous (NFe) substrates using magnetic induction and eddy current principles.
Ideal For: Automotive coatings, metal finishing, manufacturing quality control, and inspection of paint, plating, and anodized surfaces.
| Parameter | Specification |
|---|---|
| Measuring Range | 0–1250 µm |
| Working Principle | Magnetic Induction & Eddy Current |
| Substrate Compatibility | Fe & NFe (Dual Use) |
| Resolution | 0.1 µm / 0.1 mil |
| Accuracy | ±(1–3% + 1 µm) |
| Minimum Measuring Area | 6 mm |
| Minimum Curvature | Convex: Radius ≥ 1.5 mm / Concave: Radius ≥ 25 mm |
| Minimum Substrate Thickness | Fe: ≥ 0.4 mm / NFe: ≥ 0.4 mm |
| Working Temperature | 0 °C – 40 °C |
| Power Supply | 2 × AA batteries |
| Weight | Approx. 70 g |
| Dimensions | 130 × 72 × 29 mm |
| Feature | Description |
|---|---|
| Durable Ruby Probe | Provides superior wear resistance and long-term accuracy. |
| One-Key Operation | Simplifies zeroing, calibration, and measurement with a single button. |
| Dual Technology | Automatically switches between magnetic and eddy current modes. |
| Integrated Design | Compact and lightweight for easy handheld operation. |
| Wide Application Range | Suitable for coating, painting, plating, and anodizing inspections. |
| High Precision | Resolution up to 0.1 µm for detailed coating analysis. |
Rental Inclusions & Support
Rental Periods
Calibrated device + test block
Cost Efficiency
No capex; avoid maintenance or calibration overhead
Support Package
Includes technical support and optional training
