Surface & Material Testing Equipment Rental
Lease precision testers Surface Roughness, Gloss, Push-Pull, and Metal Detection for accurate finish, quality, force, and embedded-metal evaluation.
Rental Services/ Surface & Material Testing Equipment Rental

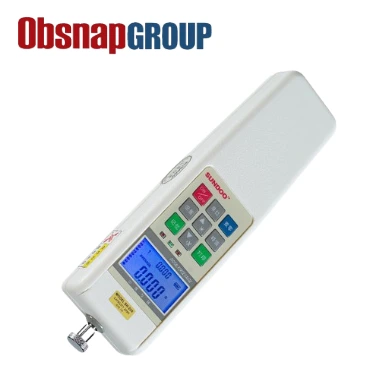

Push‑Pull Gauge (Sundoo SH Series)
Model: Sundoo SH Series
Type: Digital Push–Pull (Tension & Compression) Force Gauge
Purpose: Measures tensile (pull) and compressive (push) forces for mechanical assembly validation, spring testing, packaging seal strength, and product durability testing.
Ideal For: Production quality control, R&D testing, connector insertion/withdrawal testing, and small component mechanical evaluation.
All gauges are factory-calibrated, easy to operate, and supplied with attachments, certificate, and optional test stands for stable measurements.
| Parameter | Specification |
|---|---|
| Model Range | SH-2, SH-5, SH-10, SH-20, SH-50, SH-100, SH-200, SH-500 (and higher) |
| Capacity Range | 2 N – 500 N (model dependent) |
| Resolution | 0.001 N – 0.1 N |
| Accuracy | ±0.5% F.S. |
| Sensor Type | Built-in load cell (S-type sensor for high capacity) |
| Display | Backlit digital LCD |
| Power Supply | Rechargeable lithium battery / DC adapter |
| Battery Life | Approx. 12–20 hours continuous use |
| Output Interface | RS-232 / USB (optional software connection) |
| Operating Temperature | 0 °C – 40 °C |
| Dimensions | Approx. 200 × 60 × 40 mm |
| Weight | ~0.8 kg |
| Mounting | Handheld or stand-mounted |
| Feature | Description |
|---|---|
| Dual Measurement Mode | Measures both compression and tension forces with high accuracy. |
| Peak Hold & Auto Release | Captures peak readings and releases automatically after a set time. |
| Upper/Lower Limit Alarms | Visual (LED) and audible (buzzer) alerts for pass/fail testing. |
| Data Storage & Average Function | Stores multiple readings and auto-calculates mean value. |
| USB / RS-232 Connectivity | Supports PC connection for recording and analysis. |
| Auto Power-Off & Backlit Screen | Energy-saving and easy to read in dim environments. |
| Compact & Lightweight Design | Portable for handheld use or bench mounting with a stand. |
Applications
Rental Inclusions & Support
Flexible Duration
Available for daily, weekly, or monthly rental periods
Cost Efficiency
No capex; avoid maintenance or calibration overhead
Support Package
Includes technical support and optional training
