HVAC Testing Instruments Rental
Rent reliable HVAC testing instruments ideal for air balancing, system validation, and environmental compliance with accurate, ready-to-use equipment.
Rental Services / HVAC Testing Instruments

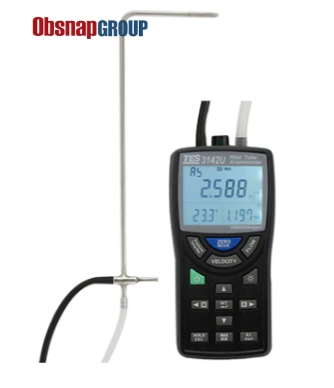

Pitot Tube Anemometer & Differential Pressure Manometer Rental (TES-3142 / TES-3142U)
Model: TES-3142 / TES-3142U
Type: Multi-Function Pitot Tube Anemometer with Differential Pressure Measurement
Purpose: Measures air velocity, volumetric flow, differential pressure, temperature, and humidity for HVAC testing, ventilation audits, and cleanroom verification.
Ideal For: Industrial ventilation checks, air balancing, environmental monitoring, HVAC commissioning, and laboratory calibration.
| Parameter | Specification |
|---|---|
| Display | Triple display, 4-digit LCD |
| Differential Pressure Range | ±80.0 mbar (±0.08 psi) |
| Resolution | 0.001 mbar / 0.001 psi |
| Accuracy | ±1% of reading ±0.004 psi |
| Velocity (from Pitot Tube) | Range: 1–80 m/s, Resolution: 0.01 m/s |
| Volumetric Flow | Calculated from input area and velocity |
| Temperature Range | -20 °C to +80 °C |
| Temperature Accuracy | ±0.3 °C (±0.5 °F) from 5–45 °C |
| Relative Humidity Range | 10 %RH – 95 %RH |
| Humidity Accuracy | ±3 %RH (20–80 %RH), ±5 %RH (below 20 %RH or above 80 %RH) |
| Response Time | Humidity: < 63% in 10 s (from 33 to 75 %RH) |
| Warm-Up Time | < 10 s |
| Operating Conditions | 0 °C – 50 °C, < 85 %RH |
| Power Supply | 1.5 V × 4 AA batteries / AC adapter |
| Battery Life | Approx. 70 hours continuous |
| Dimensions | 265 (L) × 72 (W) × 38 (H) mm |
| Weight | Approx. 205 g (excluding probe) |
| Interface (TES-3142U) | USB connection / microSD data card (4 GB) |
| Feature | Description |
|---|---|
| 5-in-1 Multi-Function Meter | Measures pressure, velocity, flow, temperature, and humidity. |
| High-Accuracy Differential Pressure Sensor | Ideal for ventilation ducts, filters, and cleanroom testing. |
| Triple Display Interface | View multiple readings simultaneously for efficient analysis. |
| Data Logging (TES-3142U) | Records up to 99 datasets with microSD or USB output. |
| Auto Data Averaging | Calculates min/max/average for each parameter. |
| USB / PC Connectivity | Real-time monitoring via software (TES-3142U). |
| Compact & Lightweight | Easy for handheld use or field inspections. |
| Fast Response Time | Delivers real-time feedback for accurate balancing and adjustment. |
Application
Rental Inclusions & Support
Cost-Efficient
Avoid upfront investment for short-term or infrequent testing projects
Calibrated & Ready to Use
All units are verified with standard reference blocks before dispatch
Technical Support
Assistance for setup, test methods, and scale conversion
Flexible Terms
Available for daily, weekly, or monthly rental durations
High Accuracy & Reliability
All instruments comply with ISO and ASTM hardness testing standards
