Description
Includes :

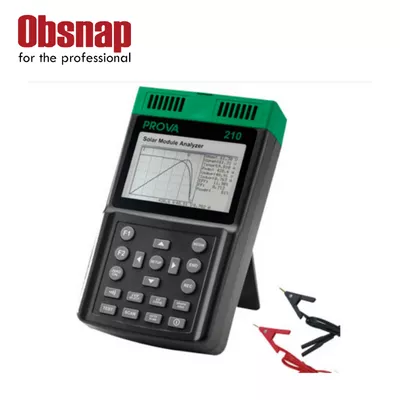

PROVA 200A PV Analyzer
PROVA 800 Multi-Input Thermometer / Datalogger
Solar Cell/Panel Fixture
Specification:
1. Dimension: 300(L)×300(W)×420(H)mm / 11.8＂×11.8＂×16.5＂
2. Height from Halogen Lamps to table base：
* Adjustable from 90mm to 30cm
* Standard: 150mm
3. Solar Cell / Module for measurement: Max. 300 × 250mm / 11.8＂×9.8＂
4. Light sensor: 100~1500 W/m2
5. with K-type Thermocouple
6. with Halogen Lamp (Simulation of Sun Light): DC12V，50W × 3 pcs
7. Input Voltage (for Halogen Lamps): DC 0V~40V
