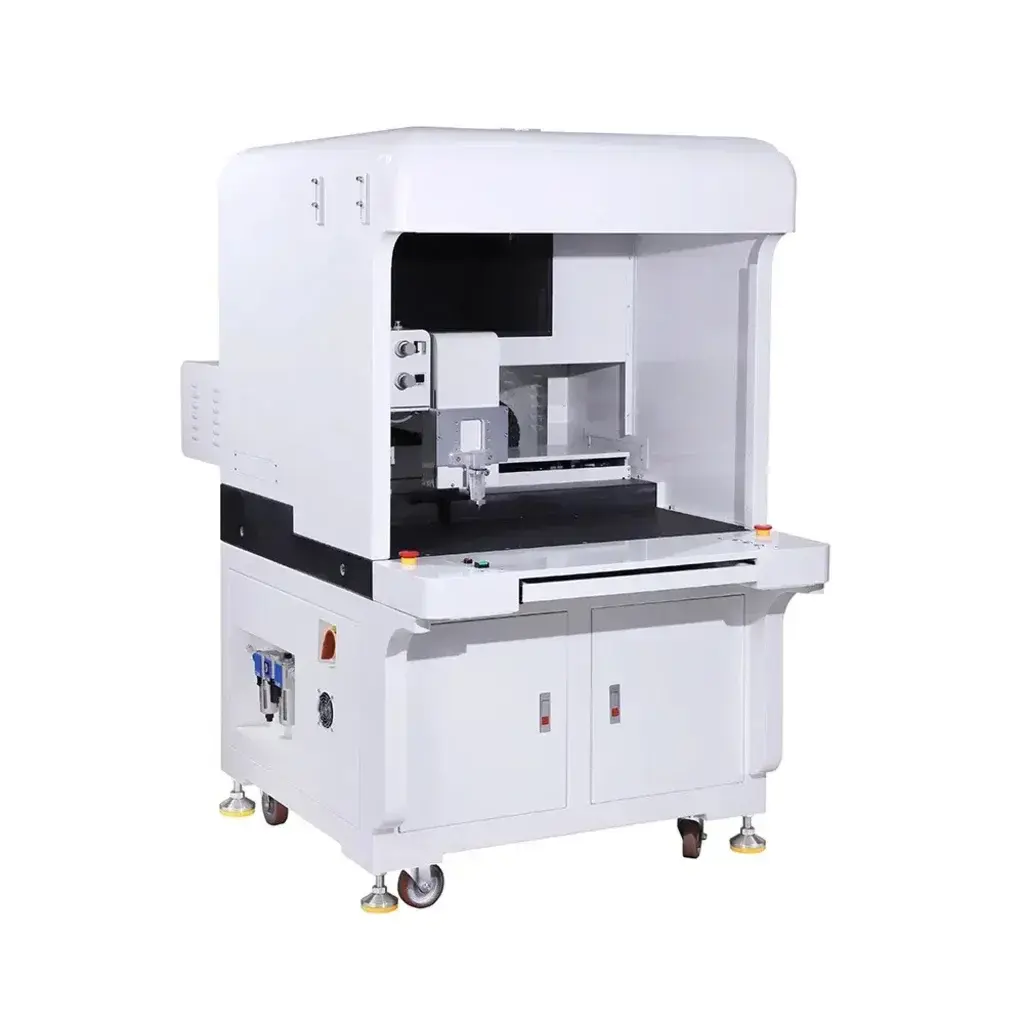

Smart Vision-Guided Dispensing Machine
The WellPack Smart Vision-Guided Dispensing Machine ensures precise, efficient adhesive application with real-time vision alignment. Perfect for electronics, medical devices, automotive, and premium packaging where accuracy and quality are critical.
Precision automation for flawless adhesive performance
The WellPack Smart Vision-Guided Dispensing Machine, offered by Obsnap Automation, combines automated adhesive dispensing with advanced vision guidance for maximum accuracy and efficiency. Designed for complex assemblies, multi-point applications, and high-precision components, this machine ensures micron-level positioning, repeatable results, and fast production cycles.
Its vision-guided system allows for real-time alignment of components and adhesive application, making it perfect for industries where precision and quality cannot be compromised, such as electronics, medical devices, automotive, and high-end packaging.
Key Features
Our WellPack Smart Vision-Guided Dispensing Machine is designed with advanced technology to streamline your labelling process:

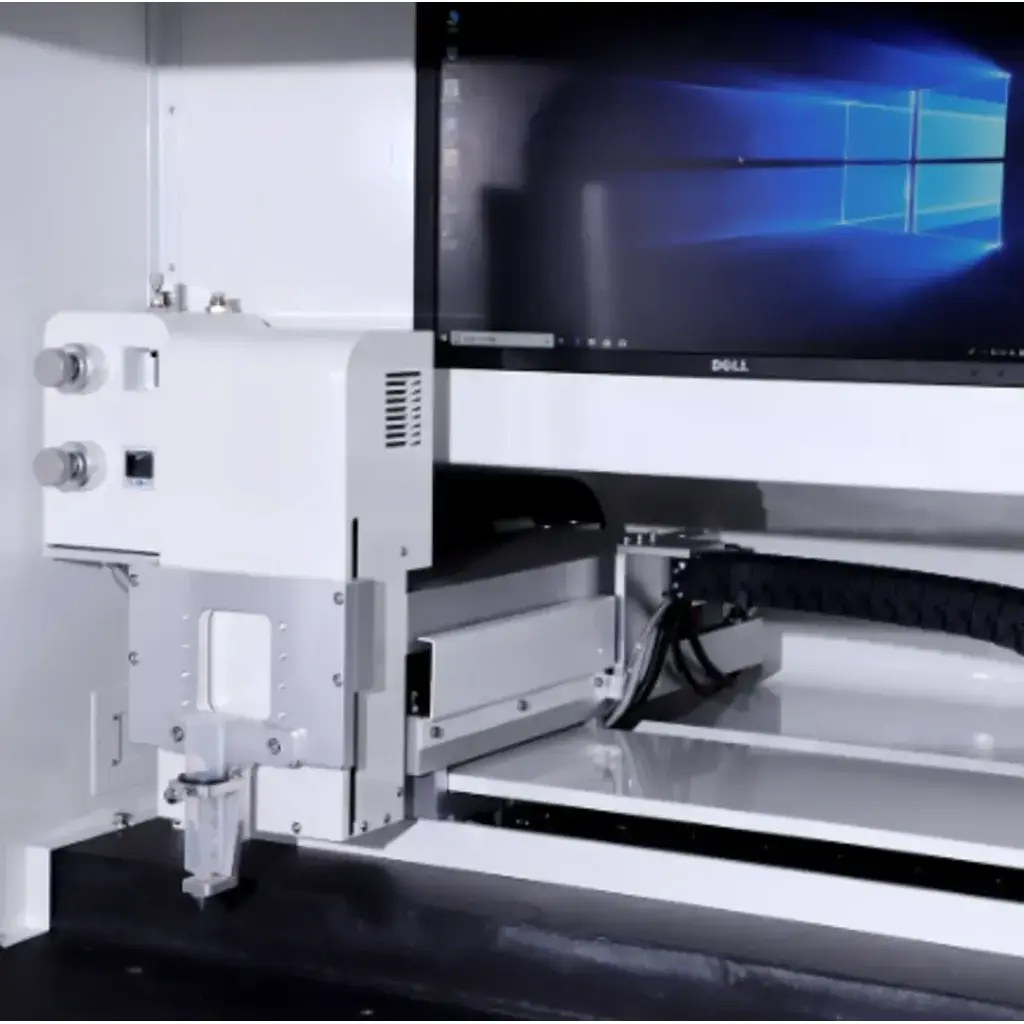

Vision-Guided Precision
Integrated camera system detects and aligns components for exact adhesive placement.
High-Speed, Accurate Dispensing
Servo motors combined with ball screws allow fast, precise adhesive application.
Stable Machine Operation
Equipped with SMC dual-rod slide cylinders for smooth movement and minimal mechanical error.
User-Friendly Teaching Pendant
Intuitive icon-based interface for programming complex dispensing paths with pre- and post-delay settings.
Multi-Axis Interpolation
3-axis (XYZ) motion control supports complex 3D dispensing routes.
Optional Magnetic / Photoelectric Switches
Includes dispensing count alarms and real-time process monitoring.
Gantry-Style Structure
Easy fixture installation and product handling for high-throughput operations.
Software - Controlled Programming
Optional external controller or software interface for flexible automation.
Applications in Action
The WellPack Smart Vision-Guided Dispensing Machine serves multiple industries, providing precision, speed, and reliability
Electronics & Electrical Components
Apply adhesives to printed circuit boards (PCBs), connectors, sensors, and electronic assemblies with micron-level accuracy.
Automotive & Industrial Components
Dispense adhesives on gaskets, seals, sensors, connectors, and assembly parts with repeatable precision.
Medical Devices & Precision Equipment
Precision dispensing for syringes, vials, sensors, and delicate instrument assemblies.
Industrial Automation & Protoatyping
Ideal for small-batch production, product development, or prototyping where precise adhesive application is critical.
Packaging & Consumer Goods
Used in food, beverage, and consumer goods production lines for carton sealing, tray forming, and product labelling.
Education
Perfect for training institutions and technical colleges to demonstrate real-world automation principles in mechatronics, robotics, and manufacturing courses.
Each application benefits from consistent dispensing, reduced waste, and faster production, letting your business scale efficiently.
Labelling Machine Specificiations
| Model | JT-HPD800 | JT-HPD400 |
|---|---|---|
| Working Range (X/Y/Z-Axis) | 800 × 300 × 800 mm | 400 × 400 × 100 mm |
| Max Load (Y/Z-Axis) | 10 kg | 10 kg |
| Movement Speed (mm/sec) | 0.1 – 1000 mm/sec | 0.1 – 600 mm/sec |
| Resolution | 0.001 mm/axis | 0.001 mm/axis |
| Repetitive Position Accuracy | ±0.01 mm/axis | ±0.01 mm/axis |
| Motor System | Panasonic Servo Motor | Panasonic Servo Motor |
| Driving Method | Ball screw | Ball screw |
| Interpolation Function | 3-axis (any direction in 3D space) | 3-axis (any direction in 3D space) |
| Programming Method | Software / controller box (optional) | Software / controller box (optional) |
| I/O Signals Port | 8 I/O | 8 I/O |
| External Interface | USB | USB |
| Power | AC220V 50/60Hz | AC220V 50/60Hz |
| Working Temperature | 10°C – 40°C | 10°C – 40°C |
| Working Relative Humidity | 20% – 90% RH | 20% – 90% RH |
| Dimensions (W×D×H) | 1380 × 1523 × 1630 mm | 980 × 1523 × 1630 mm |
| Net Weight | 660 kg | 550 kg |
Which WellPack Smart Vision-Guided Dispensing Machine is Right for You?
Selecting the right dispensing model depends on your container sizes, label formats, and production requirements.
To help you decide, here’s a clear comparison of our Smart Vision-Guided Dispensing Machines:
| Model | Best For | How It Works | Advantages |
|---|---|---|---|
| JT-HPD800 | • High-speed, large-scale production | • Vision-guided adhesive placement over a large work area (800 × 300 × 800 mm) • Multi-axis interpolation for complex 3D dispensing paths | • Ideal for large PCBs, automotive assemblies, and high-volume electronics • Ensures high precision and repeatability • Reduces material waste and minimizes rework • Optimized for fast, large-scale production |
| JT-HPD400 | • Small to medium products with complex assembly | • Vision-guided adhesive dispensing over a medium work area (400 × 400 × 100 mm) • Supports intricate dispensing paths for delicate and small components | • Perfect for smaller electronics, medical devices, and prototypes • Maintains precise adhesive placement and consistent quality • Reduces errors and material waste • Flexible and scalable for production or R&D applications |
Why Businesses Choose Our Smart Vision-Guided Dispensing Machines
When investing in a dispensing solution, you need more than just a machine; you need reliability, consistency, and long-term value.
Here’s why WellPack machines stand out:
Maximize Accuracy
Reduce Waste & Rework
Versatile Across Industries
Easy Programming & Operation
Durable & Reliable
Future-Proof Production
FAQ
Find answers to the most commonly asked questions about our services, policies, and support. Quick help, all in one place
- JT-HPD800: Large assemblies and PCBs up to 800 × 300 × 800 mm.
- JT-HPD400: Smaller assemblies up to 400 × 400 × 100 mm.
Yes, compatible with UV, epoxy, water-based, and other industrial adhesives.
No, built-in controller or optional software interface allows standalone operation.
Yes, intuitive teaching pendant and optional vision system simplify installation and alignment.
Electronics, automotive, medical devices, packaging, industrial automation, and prototyping.
