Smart Glue Dispensing Machine with 4 Adjustable Flow Control
A compact, intelligent system that delivers precise glue control for cleaner finishes, lower material costs, and faster, more reliable packaging performance.
Precision dispensing for flawless adhesive performance
The WellPack Smart Glue Dispensing Machine with 4 Adjustable Flow Control, offered by Obsnap Automation, provides precise, automated adhesive dispensing for small to large-scale production lines. With its quad-flow system, operators can control glue output at four independent points on the work surface, ensuring high repeatability, consistent quality, and faster production across complex assemblies.
This machine is ideal for industries that require simultaneous adhesive application across multiple contact points, reducing production time while maintaining accuracy. Its robust design, intuitive controls, and optional vision guidance make it a reliable choice for electronics, automotive, medical, packaging, and prototyping applications.
Key Features
Our WellPack Smart Glue Dispensing Machine with 4 Adjustable Flow Control is designed with advanced technology to streamline your labelling process:
Automated Precision Dispensing
Eliminates manual glue application, ensuring consistent, repeatable results.
Optional Vision System
Supports vision-guided alignment for even greater dispensing precision.
User-Friendly Teaching Pendant
Icon-based interface allows easy programming of complex dispensing paths, calibration points, and matrix copying.
Controlled Dispensing Speed
High-precision stepper motors and built-in controllers provide consistent flow rates.
Standalone Operation & Easy Installation
Quick setup without external computers; simple and intuitive to operate.

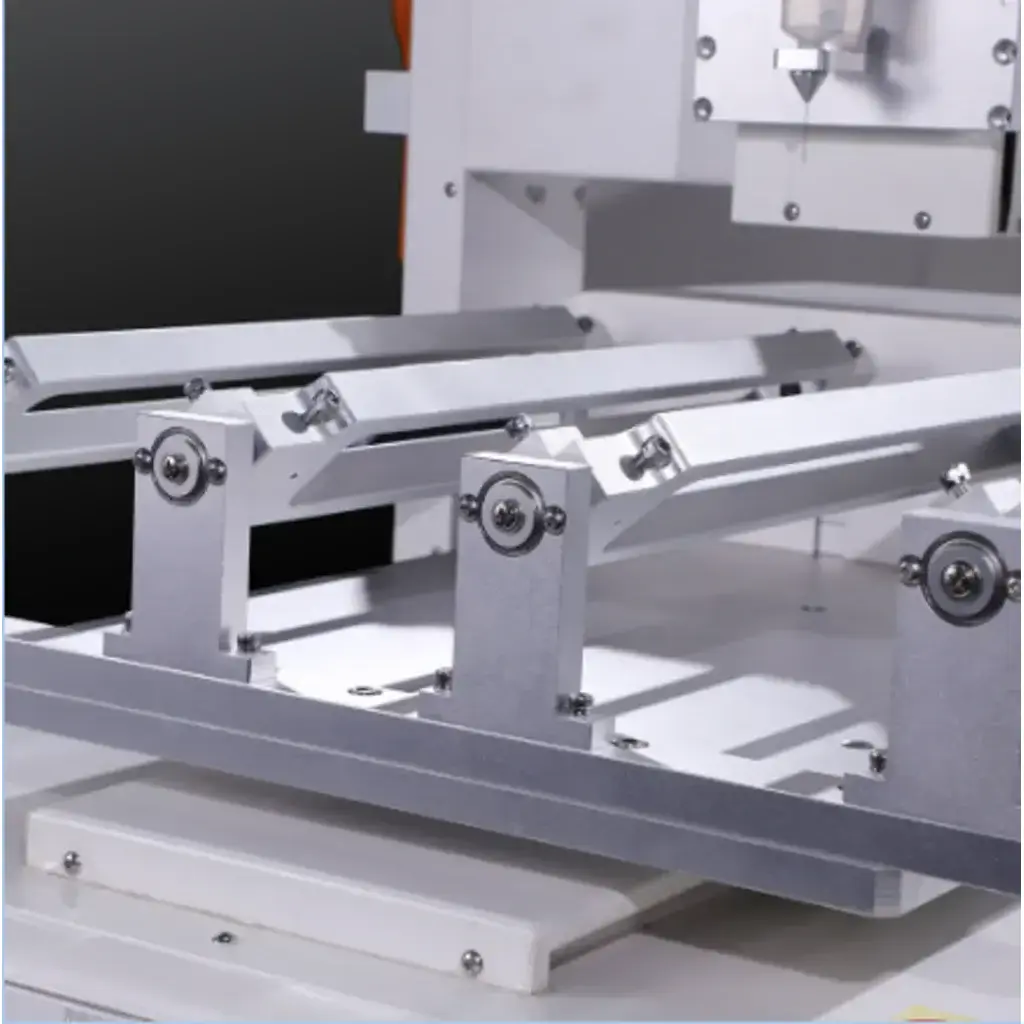

Four Adjustable Flow Points
Fine-tune adhesive flow at four independent positions on the desk surface for maximum efficiency.
Applications in Action
The WellPack Smart Glue Dispensing Machine with 4 Adjustable Flow Control serves multiple industries, providing precision, speed, and efficiency:
Electronics & Electrical Components
Ideal for SMT assembly, PCB potting, or electronic device manufacturing where simultaneous dispensing ensures high productivity.
Automotive & Industrial Components
Supports bonding and sealing on automotive assembly lines, industrial machinery, and equipment manufacturing.
Medical Devices & Precision Equipment
Precision dispensing for syringes, vials, sensors, and delicate instrument assemblies.
Industrial Automation & Prototyping
Ideal for small-batch production, product development, or prototyping where precise adhesive application is critical.
Packaging & Consumer Goods
Four-point dispensing allows decorative, structural, or tamper-proof glue application in one pass.
Education
Perfect for training institutions and technical colleges to demonstrate real-world automation principles in mechatronics, robotics, and manufacturing courses.
Each application benefits from consistent dispensing, reduced waste, and faster production, letting your business scale efficiently.
Smart Glue Dispensing Machine with 4 Adjustable Flow Control Specificiations
| Model | JT-D4400 | JT-D4410 |
|---|---|---|
| Working Range(mm) | ||
| X-axis | 400mm | 400mm |
| Y1/Y2/Y3/Y4-axis | 400mm | 400mm |
| Z-axis | 100mm | 120mm |
| Adhesive & Glue | ||
| Heating Temperature Range | 0-360°C | 0-360°C |
| Max Load(kg) | ||
| Y-axis | 10kg | 10kg |
| Z-axis | 5kg | 5kg |
| Moving Speed(mm/sec) | XYZ-axis 0.1-800mm/sec | XYZ-axis 0.1-800mm/sec |
| Resolution(mm/axis) | 0.01mm/axis | 0.01mm/axis |
| Repetitive Positioning Accuracy | ±0.01mm/axis | ±0.01mm/axis |
| Programme Display | Hand-held box or LCD Box (optional) | Hand-held box or LCD Box (optional) |
| Motor System | Servo Micro-step Motor | Servo Micro-step Motor |
| Interpolation Function | 3 axis (3D stereoscopic space for any route) | 3 axis (3D stereoscopic space for any route) |
| Driving Method | Conveyor & Synchronous driving belt | Conveyor & Synchronous driving belt |
| Direction & Axis | Three axis: XYZ | Three axis: XYZ |
| Programme Way | Hand knob or computer (optional) | Hand knob or computer (optional) |
| I/O Signal Port | 8 I/O | 8 I/O |
| External Interface | USB | USB |
| Power | AC220V 50/60Hz (Optional) | AC220V 50/60Hz (Optional) |
| Working Condition | ||
| Temperature | 10-40°C | 10-40°C |
| Humidity | 20-90% no condensation | 20-90% no condensation |
| Dimension(mm) | 635*575*600mm | 635*575*600mm |
| Weight(kg) | 90kg | 100kg |
Which WellPack Smart Glue Dispensing Machine with 4 Adjustable Flow Control is Right for You?
Selecting the right dispensing model depends on your container sizes, label formats, and production requirements.
To help you decide, here’s a clear comparison of our Smart Glue Dispensing Machine with 4 Adjustable Flow Control:
| Model | Best For | How It Works | Advantages |
|---|---|---|---|
| JT-D4400 |
|
|
|
| JT-D4410 |
|
|
|
Why Businesses Choose Our Smart Glue Dispensing Machine with 4 Adjustable Flow Control
When investing in a dispensing solution, you need more than just a machine; you need reliability, consistency, and long-term value.
Here’s why WellPack machines stand out:
Maximize Efficiency
Space-Saving & Scalable
Future-Proof Your Production
Versatile Across Industries
Robust & Durable Construction
Space-Saving & Scalable
FAQ
Find answers to the most commonly asked questions about our services, policies, and support. Quick help, all in one place
- JT-D4400: Standard products requiring four-point dispensing.
- JT-D4410: Larger products with higher Z-axis capacity.
Yes, compatible with UV, epoxy, water-based, and other industrial adhesives.
No, the built-in controller and stepper motors enable standalone operation.
Yes, hand-held or LCD programming with an optional vision system simplifies installation.
Electronics, automotive, medical devices, packaging, cosmetics, and prototyping.
